Async::AudioSource Class Reference

The base class for an audio source. More...

#include <AsyncAudioSource.h>

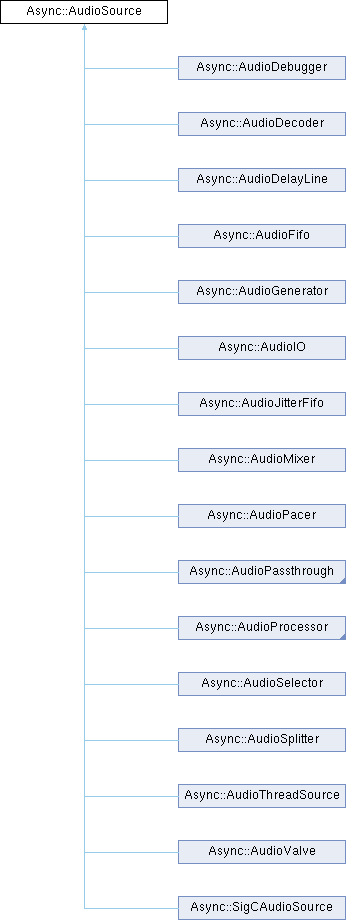

Inheritance diagram for Async::AudioSource:

Public Member Functions
	AudioSource (void)
	Default constuctor.
virtual	~AudioSource (void)
	Destructor.
bool	registerSink (AudioSink *sink, bool managed=false)
	Register an audio sink to provide samples to.
void	unregisterSink (void)
	Unregister the previously registered audio sink.
bool	isRegistered (void) const
	Check if an audio sink has been registered.
AudioSink *	sink (void) const
	Get the registered audio sink.
bool	sinkManaged (void) const
	Check if the sink is managed or not.
void	handleAllSamplesFlushed (void)
	The registered sink has flushed all samples.
virtual void	resumeOutput (void)
	Resume audio output to the sink.

Protected Member Functions
virtual void	allSamplesFlushed (void)
	The registered sink has flushed all samples.
int	sinkWriteSamples (const float *samples, int len)
void	sinkFlushSamples (void)
bool	setHandler (AudioSource *handler)
	Setup another source to handle the outgoing audio.
AudioSource *	handler (void) const
void	clearHandler (void)
	Clear a handler that was previously setup with setHandler.

Detailed Description

The base class for an audio source.

Author

Tobias Blomberg

Date

2005-04-17

This is the base class for an audio source. An audio source is a class that can produce audio.

Examples

AsyncAudioFsf_demo.cpp, AsyncAudioIO_demo.cpp, and AsyncAudioLADSPAPlugin_demo.cpp.

Definition at line 114 of file AsyncAudioSource.h.

Constructor & Destructor Documentation

AudioSource()

Async::AudioSource::AudioSource ( void )

inline

Default constuctor.

Definition at line 120 of file AsyncAudioSource.h.

~AudioSource()

virtual Async::AudioSource::~AudioSource ( void )

virtual

Destructor.

Member Function Documentation

allSamplesFlushed()

virtual void Async::AudioSource::allSamplesFlushed ( void )

inlineprotectedvirtual

The registered sink has flushed all samples.

This function should be implemented by the inheriting class. It will be called when all samples have been flushed in the registered sink. If it is not reimplemented, a handler must be set that handle the function call. This function is normally only called from a connected sink object.

Reimplemented in Async::AudioDebugger, Async::AudioDecoder, Async::AudioDelayLine, Async::AudioFifo, Async::AudioGenerator, Async::AudioIO, Async::AudioJitterFifo, Async::AudioMixer, Async::AudioPacer, Async::AudioPassthrough, Async::AudioProcessor, Async::AudioSelector, Async::AudioStreamStateDetector, Async::AudioValve, and Async::SigCAudioSource.

Examples

AsyncAudioIO_demo.cpp.

Definition at line 206 of file AsyncAudioSource.h.

References handleAllSamplesFlushed().

Referenced by handleAllSamplesFlushed().

clearHandler()

void Async::AudioSource::clearHandler ( void )

protected

Clear a handler that was previously setup with setHandler.

handleAllSamplesFlushed()

void Async::AudioSource::handleAllSamplesFlushed ( void )

inline

The registered sink has flushed all samples.

This function will be called when all samples have been flushed in the registered sink. This function is normally only called from a connected sink object.

Definition at line 175 of file AsyncAudioSource.h.

References allSamplesFlushed().

Referenced by allSamplesFlushed().

handler()

AudioSource * Async::AudioSource::handler ( void ) const

inlineprotected

Definition at line 253 of file AsyncAudioSource.h.

isRegistered()

bool Async::AudioSource::isRegistered ( void ) const

inline

Check if an audio sink has been registered.

Returns

Returns true if there is an audio sink registerd

Definition at line 149 of file AsyncAudioSource.h.

registerSink()

bool Async::AudioSource::registerSink	(	AudioSink *	sink,
		bool	managed = false )

Register an audio sink to provide samples to.

Parameters

sink	The audio sink to register
managed	If true, the registered sink will be destroyed when this object is destroyed.

Returns

Returns true on success or else false

Examples

AsyncAudioContainer_demo.cpp, AsyncAudioFsf_demo.cpp, and AsyncAudioLADSPAPlugin_demo.cpp.

Referenced by Async::AudioDebugger::AudioDebugger().

resumeOutput()

virtual void Async::AudioSource::resumeOutput ( void )

inlinevirtual

Resume audio output to the sink.

This function must be reimplemented by the inheriting class. It will be called when the registered audio sink is ready to accept more samples. This function is normally only called from a connected sink object.

Reimplemented in Async::AudioDebugger, Async::AudioDecoder, Async::AudioDelayLine, Async::AudioFifo, Async::AudioGenerator, Async::AudioIO, Async::AudioJitterFifo, Async::AudioMixer, Async::AudioPacer, Async::AudioPassthrough, Async::AudioProcessor, Async::AudioSelector, Async::AudioValve, and Async::SigCAudioSource.

Examples

AsyncAudioIO_demo.cpp.

Definition at line 189 of file AsyncAudioSource.h.

References resumeOutput().

Referenced by resumeOutput().

setHandler()

bool Async::AudioSource::setHandler ( AudioSource * handler )

protected

Setup another source to handle the outgoing audio.

Parameters

handler

The source to handle the audio

Returns

Returns true on success or else false

This function will setup another source to handle outgoing audio. This can be used when an internal object should handle the audio for this object.

sink()

AudioSink * Async::AudioSource::sink ( void ) const

inline

Get the registered audio sink.

Returns

Returns the registered audio sink if any registered or else returns 0.

Definition at line 156 of file AsyncAudioSource.h.

Referenced by Async::AudioDebugger::AudioDebugger().

sinkFlushSamples()

void Async::AudioSource::sinkFlushSamples ( void )

protected

Examples

AsyncAudioIO_demo.cpp.

Referenced by Async::AudioGenerator::enable(), Async::AudioDecoder::flushEncodedSamples(), Async::AudioDebugger::flushSamples(), Async::AudioPassthrough::flushSamples(), Async::AudioValve::flushSamples(), Async::SigCAudioSource::flushSamples(), and Async::AudioValve::setOpen().

sinkManaged()

bool Async::AudioSource::sinkManaged ( void ) const

inline

Check if the sink is managed or not.

Returns

Returns true if the sink is managed or false if not

This function is used to find out if the connected sink is managed or not. A managed sink will automatically be deleted when this source object is deleted.

Definition at line 166 of file AsyncAudioSource.h.

sinkWriteSamples()

int Async::AudioSource::sinkWriteSamples ( const float * samples, int len )

protected

Examples

AsyncAudioIO_demo.cpp.

Referenced by Async::AudioDebugger::writeSamples(), Async::AudioPassthrough::writeSamples(), Async::AudioValve::writeSamples(), and Async::SigCAudioSource::writeSamples().

unregisterSink()

void Async::AudioSource::unregisterSink

(

void

)

Unregister the previously registered audio sink.

---

The documentation for this class was generated from the following file:

• AsyncAudioSource.h
