The base class for an audio sink. More...

#include <AsyncAudioSink.h>

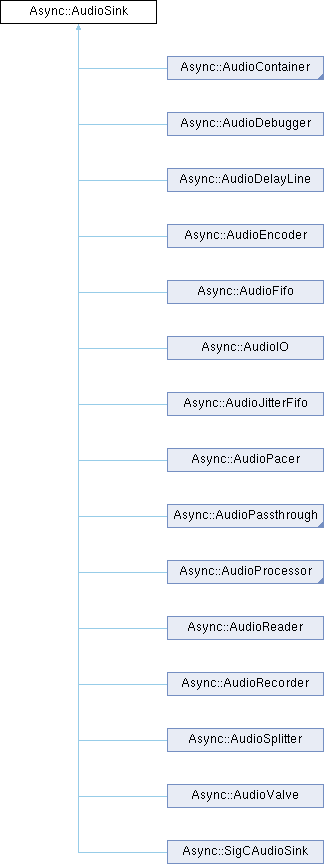

Inheritance diagram for Async::AudioSink:

Public Member Functions
	AudioSink (void)
	Default constuctor.

virtual	~AudioSink (void)
	Destructor.

bool	registerSource (AudioSource *source)
	Register an audio source to provide samples to this sink.

void	unregisterSource (void)
	Unregister the previously registered audio source.

bool	isRegistered (void) const
	Check if an audio source has been registered.

AudioSource *	source (void) const
	Get the registered audio source.

virtual int	writeSamples (const float *samples, int count)
	Write samples into this audio sink.

virtual void	flushSamples (void)
	Tell the sink to flush the previously written samples.

Protected Member Functions
void	sourceResumeOutput (void)
	Tell the source that we are ready to accept more samples.

void	sourceAllSamplesFlushed (void)
	Tell the source that all samples have been flushed.

bool	setHandler (AudioSink *handler)
	Setup another sink to handle the incoming audio.

void	clearHandler (void)
	Clear a handler that was previously setup with setHandler.

AudioSink *	handler (void) const

Detailed Description

The base class for an audio sink.

Author: Tobias Blomberg

Date: 2005-04-17

This is the base class for an audio sink. An audio sink is a class that can consume audio.

Examples: AsyncAudioContainer_demo.cpp, and AsyncAudioIO_demo.cpp.

Definition at line 115 of file AsyncAudioSink.h.

Constructor & Destructor Documentation

◆ AudioSink()

Async::AudioSink::AudioSink ( void )

inline

Default constuctor.

Definition at line 121 of file AsyncAudioSink.h.

◆ ~AudioSink()

virtual Async::AudioSink::~AudioSink ( void )

virtual

Destructor.

Member Function Documentation

◆ clearHandler()

void Async::AudioSink::clearHandler ( void )

protected

Clear a handler that was previously setup with setHandler.

Examples: AsyncAudioContainer_demo.cpp.

◆ flushSamples()

virtual void Async::AudioSink::flushSamples ( void )

inlinevirtual

Tell the sink to flush the previously written samples.

This function is used to tell the sink to flush previously written samples. When done flushing, the sink should call the sourceAllSamplesFlushed function. This function is normally only called from a connected source object.

Reimplemented in Async::AudioContainerPcm, Async::AudioContainerWav, Async::AudioDebugger, Async::AudioDelayLine, Async::AudioEncoder, Async::AudioFifo, Async::AudioJitterFifo, Async::AudioPacer, Async::AudioPassthrough, Async::AudioProcessor, Async::AudioReader, Async::AudioRecorder, Async::AudioSplitter, Async::AudioStreamStateDetector, Async::AudioValve, and Async::SigCAudioSink.

Examples: AsyncAudioIO_demo.cpp.

Definition at line 178 of file AsyncAudioSink.h.

References flushSamples().

Referenced by Async::AudioContainer::endStream(), and flushSamples().

◆ handler()

AudioSink * Async::AudioSink::handler ( void ) const

inlineprotected

Definition at line 222 of file AsyncAudioSink.h.

◆ isRegistered()

bool Async::AudioSink::isRegistered ( void ) const

inline

Check if an audio source has been registered.

Returns: Returns true if there is an audio source registerd

Definition at line 144 of file AsyncAudioSink.h.

◆ registerSource()

bool Async::AudioSink::registerSource ( AudioSource * source )

Register an audio source to provide samples to this sink.

Parameters

source The audio source to use

Returns: Returns true on success or else false

Examples: AsyncAudioIO_demo.cpp.

Referenced by Async::AudioDebugger::AudioDebugger().

◆ setHandler()

bool Async::AudioSink::setHandler ( AudioSink * handler )

protected

Setup another sink to handle the incoming audio.

Parameters

handler The sink to handle the audio

Returns: Returns true on success or else false

This function will setup another sink to handle incoming audio. This can be used when an internal object should handle the audio for this object.

Examples: AsyncAudioContainer_demo.cpp.

◆ source()

AudioSource * Async::AudioSink::source ( void ) const

inline

Get the registered audio source.

Returns: Returns the registered audio source if any registered or else returns 0.

Definition at line 151 of file AsyncAudioSink.h.

◆ sourceAllSamplesFlushed()

void Async::AudioSink::sourceAllSamplesFlushed ( void )

protected

Tell the source that all samples have been flushed.

This function is called by the inheriting class to indicate that all samples have been flushed. It may only be called after a flushSamples call has been received and no more samples has been written to the sink.

Examples: AsyncAudioIO_demo.cpp.

Referenced by Async::AudioEncoder::allEncodedSamplesFlushed(), Async::AudioDebugger::allSamplesFlushed(), Async::AudioPassthrough::allSamplesFlushed(), Async::AudioValve::allSamplesFlushed(), Async::SigCAudioSink::allSamplesFlushed(), Async::AudioValve::flushSamples(), and Async::AudioValve::setOpen().

◆ sourceResumeOutput()

void Async::AudioSink::sourceResumeOutput ( void )

protected

Tell the source that we are ready to accept more samples.

Examples: AsyncAudioIO_demo.cpp.

Referenced by Async::AudioDebugger::resumeOutput(), Async::AudioPassthrough::resumeOutput(), Async::AudioValve::resumeOutput(), Async::SigCAudioSink::resumeOutput(), Async::AudioValve::setBlockWhenClosed(), and Async::AudioValve::setOpen().

◆ unregisterSource()

void Async::AudioSink::unregisterSource ( void )

Unregister the previously registered audio source.

◆ writeSamples()

virtual int Async::AudioSink::writeSamples	(	const float *	samples,
		int	count )

inlinevirtual

Write samples into this audio sink.

Parameters

samples	The buffer containing the samples
count	The number of samples in the buffer

Returns: Returns the number of samples that has been taken care of

This function is used to write audio into this audio sink. If it returns 0, no more samples should be written until the resumeOutput function in the source have been called. This function is normally only called from a connected source object.

Reimplemented in Async::AudioContainerPcm, Async::AudioContainerWav, Async::AudioDebugger, Async::AudioDelayLine, Async::AudioFifo, Async::AudioJitterFifo, Async::AudioPacer, Async::AudioPassthrough, Async::AudioProcessor, Async::AudioReader, Async::AudioRecorder, Async::AudioSplitter, Async::AudioStreamStateDetector, Async::AudioValve, and Async::SigCAudioSink.
