Async::AudioPassthrough Class Reference

This class just let the audio pass through. More...

#include <AsyncAudioPassthrough.h>

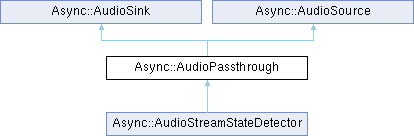

Inheritance diagram for Async::AudioPassthrough:

Public Member Functions
	AudioPassthrough (void)
	Default constuctor.
virtual	~AudioPassthrough (void)
	Destructor.
virtual int	writeSamples (const float *samples, int count)
	Write samples into this audio sink.
virtual void	flushSamples (void)
	Tell the sink to flush the previously written samples.
virtual void	resumeOutput (void)
	Resume audio output to the sink.
virtual void	allSamplesFlushed (void)
	The registered sink has flushed all samples.
Public Member Functions inherited from Async::AudioSink
	AudioSink (void)
	Default constuctor.
virtual	~AudioSink (void)
	Destructor.
bool	registerSource (AudioSource *source)
	Register an audio source to provide samples to this sink.
void	unregisterSource (void)
	Unregister the previously registered audio source.
bool	isRegistered (void) const
	Check if an audio source has been registered.
AudioSource *	source (void) const
	Get the registered audio source.
Public Member Functions inherited from Async::AudioSource
	AudioSource (void)
	Default constuctor.
virtual	~AudioSource (void)
	Destructor.
bool	registerSink (AudioSink *sink, bool managed=false)
	Register an audio sink to provide samples to.
void	unregisterSink (void)
	Unregister the previously registered audio sink.
bool	isRegistered (void) const
	Check if an audio sink has been registered.
AudioSink *	sink (void) const
	Get the registered audio sink.
bool	sinkManaged (void) const
	Check if the sink is managed or not.
void	handleAllSamplesFlushed (void)
	The registered sink has flushed all samples.

Additional Inherited Members
Protected Member Functions inherited from Async::AudioSink
void	sourceResumeOutput (void)
	Tell the source that we are ready to accept more samples.
void	sourceAllSamplesFlushed (void)
	Tell the source that all samples have been flushed.
bool	setHandler (AudioSink *handler)
	Setup another sink to handle the incoming audio.
void	clearHandler (void)
	Clear a handler that was previously setup with setHandler.
AudioSink *	handler (void) const
Protected Member Functions inherited from Async::AudioSource
int	sinkWriteSamples (const float *samples, int len)
void	sinkFlushSamples (void)
bool	setHandler (AudioSource *handler)
	Setup another source to handle the outgoing audio.
AudioSource *	handler (void) const
void	clearHandler (void)
	Clear a handler that was previously setup with setHandler.

Detailed Description

This class just let the audio pass through.

Author

Tobias Blomberg / SM0SVX

Date

2006-08-07

This class is both a source and a sink and just let the audio pass through. It can be used standalone but maybe is of more use when inheriting from it. For example if you want to snoop in on an audio streem without affecting it, just reimplement the writeSamples method and you have access to the samples. Just remember to call the sinkWriteSamples method to forward the samples.

Definition at line 117 of file AsyncAudioPassthrough.h.

Constructor & Destructor Documentation

AudioPassthrough()

Async::AudioPassthrough::AudioPassthrough ( void )

inline

Default constuctor.

Definition at line 123 of file AsyncAudioPassthrough.h.

~AudioPassthrough()

virtual Async::AudioPassthrough::~AudioPassthrough ( void )

inlinevirtual

Destructor.

Definition at line 128 of file AsyncAudioPassthrough.h.

Member Function Documentation

allSamplesFlushed()

virtual void Async::AudioPassthrough::allSamplesFlushed ( void )

inlinevirtual

The registered sink has flushed all samples.

This function will be called when all samples have been flushed in the registered sink. This function is normally only called from a connected sink object.

Reimplemented from Async::AudioSource.

Reimplemented in Async::AudioStreamStateDetector.

Definition at line 178 of file AsyncAudioPassthrough.h.

References Async::AudioSink::sourceAllSamplesFlushed().

Referenced by Async::AudioStreamStateDetector::allSamplesFlushed().

flushSamples()

virtual void Async::AudioPassthrough::flushSamples ( void )

inlinevirtual

Tell the sink to flush the previously written samples.

This function is used to tell the sink to flush previously written samples. When done flushing, the sink should call the sourceAllSamplesFlushed function. This function is normally only called from a connected source object.

Reimplemented from Async::AudioSink.

Reimplemented in Async::AudioStreamStateDetector.

Definition at line 154 of file AsyncAudioPassthrough.h.

References Async::AudioSource::sinkFlushSamples().

Referenced by Async::AudioStreamStateDetector::flushSamples().

resumeOutput()

virtual void Async::AudioPassthrough::resumeOutput ( void )

inlinevirtual

Resume audio output to the sink.

This function will be called when the registered audio sink is ready to accept more samples. This function is normally only called from a connected sink object.

Reimplemented from Async::AudioSource.

Definition at line 166 of file AsyncAudioPassthrough.h.

References Async::AudioSink::sourceResumeOutput().

writeSamples()

virtual int Async::AudioPassthrough::writeSamples ( const float * samples, int count )

inlinevirtual

Write samples into this audio sink.

Parameters

samples	The buffer containing the samples
count	The number of samples in the buffer

Returns

Returns the number of samples that has been taken care of

This function is used to write audio into this audio sink. If it returns 0, no more samples should be written until the resumeOutput function in the source have been called. This function is normally only called from a connected source object.

Reimplemented from Async::AudioSink.

Reimplemented in Async::AudioStreamStateDetector.

Definition at line 141 of file AsyncAudioPassthrough.h.

References Async::AudioSource::sinkWriteSamples().

Referenced by Async::AudioStreamStateDetector::writeSamples().

---

The documentation for this class was generated from the following file:

• AsyncAudioPassthrough.h
