Emit a signal when the state changes for the audio stream. More...

#include <AsyncAudioStreamStateDetector.h>

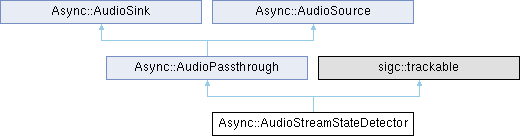

Inheritance diagram for Async::AudioStreamStateDetector:

Public Types
enum class	State { IDLE , ACTIVE , FLUSHING }
	An enum representing the stream state. More...

Public Member Functions
	AudioStreamStateDetector (void)
	Default constuctor.
virtual	~AudioStreamStateDetector (void) override
	Destructor.
virtual int	writeSamples (const float *samples, int count) override
	Write samples into this audio sink.
virtual void	flushSamples (void) override
	Tell the sink to flush the previously written samples.
virtual void	allSamplesFlushed (void) override
	The registered sink has flushed all samples.
bool	isIdle (void) const
	Check if the steam is idle or not.
bool	isActive (void) const
	Check if the steam is active or not.
bool	isFlushing (void) const
	Check if the steam is flushing or not.
State	state (void) const
	Get the stream state.
Public Member Functions inherited from Async::AudioPassthrough
	AudioPassthrough (void)
	Default constuctor.
virtual	~AudioPassthrough (void)
	Destructor.
virtual void	resumeOutput (void)
	Resume audio output to the sink.
Public Member Functions inherited from Async::AudioSink
	AudioSink (void)
	Default constuctor.
virtual	~AudioSink (void)
	Destructor.
bool	registerSource (AudioSource *source)
	Register an audio source to provide samples to this sink.
void	unregisterSource (void)
	Unregister the previously registered audio source.
bool	isRegistered (void) const
	Check if an audio source has been registered.
AudioSource *	source (void) const
	Get the registered audio source.
Public Member Functions inherited from Async::AudioSource
	AudioSource (void)
	Default constuctor.
virtual	~AudioSource (void)
	Destructor.
bool	registerSink (AudioSink *sink, bool managed=false)
	Register an audio sink to provide samples to.
void	unregisterSink (void)
	Unregister the previously registered audio sink.
bool	isRegistered (void) const
	Check if an audio sink has been registered.
AudioSink *	sink (void) const
	Get the registered audio sink.
bool	sinkManaged (void) const
	Check if the sink is managed or not.
void	handleAllSamplesFlushed (void)
	The registered sink has flushed all samples.

Public Attributes
sigc::signal< void(bool, bool)>	sigStreamStateChanged
	A signal that is emitted when the stream state changes.
sigc::signal< void(bool)>	sigStreamIsActive
	A signal that is emitted when stream activity state changes.
sigc::signal< void(bool)>	sigStreamIsIdle
	A signal that is emitted when stream idle state changes.

Additional Inherited Members
Protected Member Functions inherited from Async::AudioSink
void	sourceResumeOutput (void)
	Tell the source that we are ready to accept more samples.
void	sourceAllSamplesFlushed (void)
	Tell the source that all samples have been flushed.
bool	setHandler (AudioSink *handler)
	Setup another sink to handle the incoming audio.
void	clearHandler (void)
	Clear a handler that was previously setup with setHandler.
AudioSink *	handler (void) const
Protected Member Functions inherited from Async::AudioSource
int	sinkWriteSamples (const float *samples, int len)
void	sinkFlushSamples (void)
bool	setHandler (AudioSource *handler)
	Setup another source to handle the outgoing audio.
AudioSource *	handler (void) const
void	clearHandler (void)
	Clear a handler that was previously setup with setHandler.

Detailed Description

Emit a signal when the state changes for the audio stream.

A class that just passes the audio through and emit signals when the stream state changes. The audio stream may be in three different states. In each of these states two booleans are set up.

State Active Idle IDLE false true ACTIVE true false FLUSHING false false

The stream state start at IDLE. When the audio stream source write a sample the state go to ACTIVE. When the audio stream source flush the stream the state go to FLUSHING. When the audio sink indicate that all samples has been flushed the state go to IDLE again.

Definition at line 125 of file AsyncAudioStreamStateDetector.h.

Member Enumeration Documentation

◆ State

enum class Async::AudioStreamStateDetector::State

strong

An enum representing the stream state.

Enumerator
IDLE	There are no samples left in the stream.
ACTIVE	Samples have been written to the stream.
FLUSHING	The stream source have requested stream flush.

Definition at line 132 of file AsyncAudioStreamStateDetector.h.

Constructor & Destructor Documentation

◆ AudioStreamStateDetector()

Async::AudioStreamStateDetector::AudioStreamStateDetector ( void )

inline

Default constuctor.

Definition at line 142 of file AsyncAudioStreamStateDetector.h.

◆ ~AudioStreamStateDetector()

virtual Async::AudioStreamStateDetector::~AudioStreamStateDetector ( void )

inlineoverridevirtual

Destructor.

Definition at line 147 of file AsyncAudioStreamStateDetector.h.

Member Function Documentation

◆ allSamplesFlushed()

virtual void Async::AudioStreamStateDetector::allSamplesFlushed ( void )

inlineoverridevirtual

The registered sink has flushed all samples.

This function will be called when all samples have been flushed in the registered sink. This function is normally only called from a connected sink object.

Reimplemented from Async::AudioPassthrough.

Definition at line 187 of file AsyncAudioStreamStateDetector.h.

References Async::AudioPassthrough::allSamplesFlushed(), and IDLE.

◆ flushSamples()

virtual void Async::AudioStreamStateDetector::flushSamples ( void )

inlineoverridevirtual

Tell the sink to flush the previously written samples.

This function is used to tell the sink to flush previously written samples. When done flushing, the sink should call the sourceAllSamplesFlushed function. This function is normally only called from a connected source object.

Reimplemented from Async::AudioPassthrough.

Definition at line 174 of file AsyncAudioStreamStateDetector.h.

References FLUSHING, and Async::AudioPassthrough::flushSamples().

◆ isActive()

bool Async::AudioStreamStateDetector::isActive ( void ) const

inline

Check if the steam is active or not.

Returns: Returns true if the stream is active or false if it's not

Definition at line 204 of file AsyncAudioStreamStateDetector.h.

References ACTIVE.

◆ isFlushing()

bool Async::AudioStreamStateDetector::isFlushing ( void ) const

inline

Check if the steam is flushing or not.

Returns: Returns true if the stream is flushing or false if it's not

Definition at line 211 of file AsyncAudioStreamStateDetector.h.

References FLUSHING.

◆ isIdle()

bool Async::AudioStreamStateDetector::isIdle ( void ) const

inline

Check if the steam is idle or not.

Returns: Returns true if the stream is idle or false if it's not

Definition at line 197 of file AsyncAudioStreamStateDetector.h.

References IDLE.

◆ state()

State Async::AudioStreamStateDetector::state ( void ) const

inline

Get the stream state.

Returns: Returns the state of the audio stream

Definition at line 217 of file AsyncAudioStreamStateDetector.h.

◆ writeSamples()

virtual int Async::AudioStreamStateDetector::writeSamples	(	const float *	samples,
		int	count )

inlineoverridevirtual

Write samples into this audio sink.

Parameters

samples	The buffer containing the samples
count	The number of samples in the buffer

Returns: Returns the number of samples that has been taken care of

This function is used to write audio into this audio sink. If it returns 0, no more samples should be written until the resumeOutput function in the source have been called. This function is normally only called from a connected source object.

Reimplemented from Async::AudioPassthrough.

Definition at line 160 of file AsyncAudioStreamStateDetector.h.

References ACTIVE, and Async::AudioPassthrough::writeSamples().
