Async::AudioProcessor Class Reference

The base class for an audio processor. More...

#include <AsyncAudioProcessor.h>

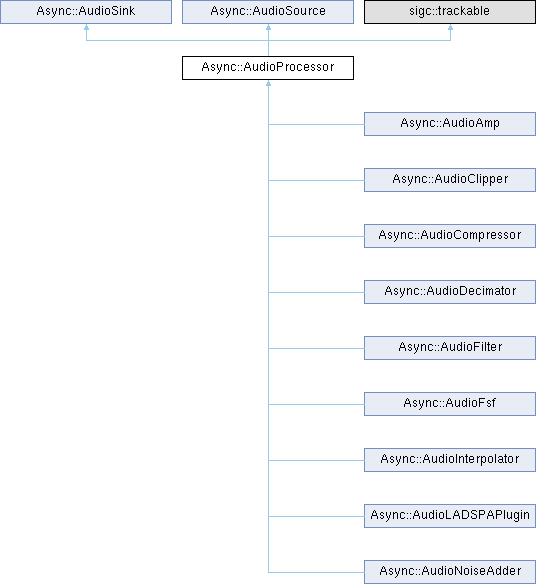

Inheritance diagram for Async::AudioProcessor:

Public Member Functions
	AudioProcessor (void)
	Default constuctor.
virtual	~AudioProcessor (void)
	Destructor.
int	writeSamples (const float *samples, int len)
	Write audio to the filter.
void	flushSamples (void)
	Order a flush of all samples.
void	resumeOutput (void)
	Resume output to the sink if previously stopped.
void	allSamplesFlushed (void)
	All samples have been flushed by the sink.
Public Member Functions inherited from Async::AudioSink
	AudioSink (void)
	Default constuctor.
virtual	~AudioSink (void)
	Destructor.
bool	registerSource (AudioSource *source)
	Register an audio source to provide samples to this sink.
void	unregisterSource (void)
	Unregister the previously registered audio source.
bool	isRegistered (void) const
	Check if an audio source has been registered.
AudioSource *	source (void) const
	Get the registered audio source.
Public Member Functions inherited from Async::AudioSource
	AudioSource (void)
	Default constuctor.
virtual	~AudioSource (void)
	Destructor.
bool	registerSink (AudioSink *sink, bool managed=false)
	Register an audio sink to provide samples to.
void	unregisterSink (void)
	Unregister the previously registered audio sink.
bool	isRegistered (void) const
	Check if an audio sink has been registered.
AudioSink *	sink (void) const
	Get the registered audio sink.
bool	sinkManaged (void) const
	Check if the sink is managed or not.
void	handleAllSamplesFlushed (void)
	The registered sink has flushed all samples.

Protected Member Functions
void	setInputOutputSampleRate (int input_rate, int output_rate)
	Set the input and output sample rates.
virtual void	processSamples (float *dest, const float *src, int count)=0
	Process incoming samples and put them into the output buffer.
Protected Member Functions inherited from Async::AudioSink
void	sourceResumeOutput (void)
	Tell the source that we are ready to accept more samples.
void	sourceAllSamplesFlushed (void)
	Tell the source that all samples have been flushed.
bool	setHandler (AudioSink *handler)
	Setup another sink to handle the incoming audio.
void	clearHandler (void)
	Clear a handler that was previously setup with setHandler.
AudioSink *	handler (void) const
Protected Member Functions inherited from Async::AudioSource
int	sinkWriteSamples (const float *samples, int len)
void	sinkFlushSamples (void)
bool	setHandler (AudioSource *handler)
	Setup another source to handle the outgoing audio.
AudioSource *	handler (void) const
void	clearHandler (void)
	Clear a handler that was previously setup with setHandler.

Detailed Description

The base class for an audio processor.

Author

Tobias Blomberg / SM0SVX

Date

2006-04-23

This class is the base class for an audio processor. An audio processor is a class that is both an audio sink and source. It receives samples, process them in some way and send them further down the chain.

Definition at line 118 of file AsyncAudioProcessor.h.

Constructor & Destructor Documentation

AudioProcessor()

Async::AudioProcessor::AudioProcessor

(

void

)

Default constuctor.

~AudioProcessor()

virtual Async::AudioProcessor::~AudioProcessor ( void )

virtual

Destructor.

Member Function Documentation

allSamplesFlushed()

void Async::AudioProcessor::allSamplesFlushed ( void )

virtual

All samples have been flushed by the sink.

Reimplemented from Async::AudioSource.

flushSamples()

void Async::AudioProcessor::flushSamples ( void )

virtual

Order a flush of all samples.

Reimplemented from Async::AudioSink.

processSamples()

virtual void Async::AudioProcessor::processSamples ( float * dest, const float * src, int count )

protectedpure virtual

Process incoming samples and put them into the output buffer.

Parameters

dest	Destination buffer
src	Source buffer
count	Number of samples in the source buffer

This function should be reimplemented by the inheriting class to do the actual processing of the incoming samples. All samples must be processed, otherwise they are lost and the output buffer will contain garbage.

Implemented in Async::AudioAmp, Async::AudioClipper, Async::AudioCompressor, Async::AudioDecimator, Async::AudioFilter, Async::AudioFsf, Async::AudioInterpolator, Async::AudioLADSPAPlugin, and Async::AudioNoiseAdder.

resumeOutput()

void Async::AudioProcessor::resumeOutput ( void )

virtual

Resume output to the sink if previously stopped.

Reimplemented from Async::AudioSource.

setInputOutputSampleRate()

void Async::AudioProcessor::setInputOutputSampleRate ( int input_rate, int output_rate )

protected

Set the input and output sample rates.

Parameters

input_rate	The input sample rate
output_rate	The output sample rate

writeSamples()

int Async::AudioProcessor::writeSamples ( const float * samples, int len )

virtual

Write audio to the filter.

Parameters

samples	The buffer containing the samples
len	The number of samples in the buffer

Returns

Return the number of samples processed

Reimplemented from Async::AudioSink.

---

The documentation for this class was generated from the following file:

• AsyncAudioProcessor.h
