Async::TcpPrioClient< ConT > Class Template Reference

A_brief_class_description. More...

#include <AsyncTcpPrioClient.h>

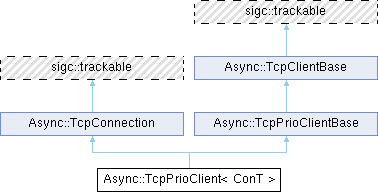

Inheritance diagram for Async::TcpPrioClient< ConT >:

Public Member Functions
	TcpPrioClient (size_t recv_buf_len=ConT::DEFAULT_RECV_BUF_LEN)
	Constructor.
	TcpPrioClient (const TcpPrioClient &)=delete
	Disallow copy construction.
TcpPrioClient &	operator= (const TcpPrioClient &)=delete
	Disallow copy assignment.
virtual	~TcpPrioClient (void)
	Destructor.
virtual void	disconnect (void)
	Disconnect from the remote host.
Public Member Functions inherited from Async::TcpConnection
	TcpConnection (size_t recv_buf_len=DEFAULT_RECV_BUF_LEN)
	Constructor.
	TcpConnection (int sock, const IpAddress &remote_addr, uint16_t remote_port, size_t recv_buf_len=DEFAULT_RECV_BUF_LEN)
	Constructor.
virtual	~TcpConnection (void)
	Destructor.
virtual TcpConnection &	operator= (TcpConnection &&other)
	Move assignmnt operator.
void	setRecvBufLen (size_t recv_buf_len)
	Set a new receive buffer size.
size_t	recvBufLen (void) const
virtual int	write (const void *buf, int count)
	Write data to the TCP connection.
IpAddress	localHost (void) const
	Get the local IP address associated with this connection.
uint16_t	localPort (void) const
	Get the local TCP port associated with this connection.
const IpAddress &	remoteHost (void) const
	Return the IP-address of the remote host.
uint16_t	remotePort (void) const
	Return the remote port used.
bool	isConnected (void) const
	Check if the connection is established or not.
bool	isIdle (void) const
	Check if the connection is idle.
void	enableSsl (bool enable)
	Enable or disable TLS for this connection.
SslX509	sslPeerCertificate (void)
	Get the peer certificate associated with this connection.
Async::SslX509	sslCertificate (void) const
long	sslVerifyResult (void) const
	Get the result of the certificate verification process.
void	setSslContext (SslContext &ctx, bool is_server)
	Set the OpenSSL context to use when setting up the connection.
SslContext *	sslContext (void)
bool	isServer (void) const
void	freeze (void)
	Stop all communication.
void	unfreeze (void)
	Reenable all communication.
Public Member Functions inherited from Async::TcpPrioClientBase
	TcpPrioClientBase (TcpConnection *con)
	Constructor.
	TcpPrioClientBase (TcpConnection *con, const std::string &remote_host, uint16_t remote_port)=delete
	Deleted constructor not making sense in this context.
	TcpPrioClientBase (TcpConnection *con, const IpAddress &remote_ip, uint16_t remote_port)=delete
	Deleted constructor not making sense in this context.
virtual	~TcpPrioClientBase (void)
	Destructor.
void	setReconnectMinTime (unsigned t)
	Minimum time between reconnects.
void	setReconnectMaxTime (unsigned t)
	Maximum time between reconnects.
void	setReconnectBackoffPercent (unsigned p)
	Percent to increase reconnect time with each try.
void	setReconnectRandomizePercent (unsigned p)
	Percent to randomize reconnect time.
void	setService (const std::string &srv_name, const std::string &srv_proto, const std::string &srv_domain)
	Use a DNS service resource record for connections.
void	addStaticSRVRecord (DnsResourceRecordSRV::Ttl ttl, DnsResourceRecordSRV::Prio prio, DnsResourceRecordSRV::Weight weight, DnsResourceRecordSRV::Port port, DnsResourceRecordSRV::Target target)
	Add a static service resource record.
const std::string &	service (void) const
	Get the full service name.
void	connect (void)
	Connect to the remote host.
void	connect (const std::string &remote_host, uint16_t remote_port)=delete
	Deleted function not making sense in this context.
void	connect (const Async::IpAddress &remote_ip, uint16_t remote_port)=delete
	Deleted function not making sense in this context.
void	markAsEstablished (void)
	Mark connection as established.
bool	markedAsEstablished (void) const
	Check if a connection has been marked as established.
bool	isIdle (void) const
	Check if the connection is idle.
bool	isPrimary (void) const
	Check if connected to the primary server.
virtual TcpClientBase &	operator= (TcpClientBase &&other)
	Inherit the assignment operator from TcpClientBase.
Public Member Functions inherited from Async::TcpClientBase
	TcpClientBase (TcpConnection *con)
	Constructor.
	TcpClientBase (TcpConnection *con, const std::string &remote_host, uint16_t remote_port)
	Constructor.
	TcpClientBase (TcpConnection *con, const IpAddress &remote_ip, uint16_t remote_port)
	Constructor.
virtual	~TcpClientBase (void)
	Destructor.
std::string	remoteHostName (void) const
	Get the name of the remote host as given to connect()
void	setBindIp (const IpAddress &bind_ip)
	Bind to the interface having the specified IP address.
const IpAddress &	bindIp (void) const
	Get the bind IP address.
void	connect (const std::string &remote_host, uint16_t remote_port)
	Connect to the remote host.
void	connect (const Async::IpAddress &remote_ip, uint16_t remote_port)
	Connect to the remote host.
void	connect (void)
	Connect to the remote host.
bool	isIdle (void) const
	Check if the connection is idle.
TcpConnection *	conObj (void)
	Return the connection object for this client connection.

Protected Member Functions
virtual void	closeConnection (void)
	Disconnect from the remote peer.
virtual void	onDisconnected (TcpConnection::DisconnectReason reason)
	Called when a connection has been terminated.
virtual TcpClientBase *	newTcpClient (void) override
	Allocate a new TcpClient object.
virtual void	emitDisconnected (TcpConnection::DisconnectReason reason)
	Emit the disconnected signal.
Protected Member Functions inherited from Async::TcpConnection
void	setSocket (int sock)
	Setup information about the connection.
void	setRemoteAddr (const IpAddress &remote_addr)
	Setup information about the connection.
void	setRemotePort (uint16_t remote_port)
	Setup information about the connection.
int	socket (void) const
	Return the socket file descriptor.
virtual int	onDataReceived (void *buf, int count)
	Called when data has been received on the connection.
virtual int	emitVerifyPeer (int preverify_ok, X509_STORE_CTX *store_ctx)
	Emit the verifyPeer signal.
Protected Member Functions inherited from Async::TcpPrioClientBase
virtual void	connectionEstablished (void) override
	Called when the connection has been established to the server.
Protected Member Functions inherited from Async::TcpClientBase
virtual void	emitConnected (void)

Additional Inherited Members
Public Types inherited from Async::TcpConnection
enum	DisconnectReason {   DR_HOST_NOT_FOUND , DR_REMOTE_DISCONNECTED , DR_SYSTEM_ERROR , DR_ORDERED_DISCONNECT ,   DR_PROTOCOL_ERROR , DR_SWITCH_PEER , DR_BAD_STATE }
	Reason code for disconnects. More...
Static Public Member Functions inherited from Async::TcpConnection
static const char *	disconnectReasonStr (DisconnectReason reason)
	Translate disconnect reason to a string.
Public Attributes inherited from Async::TcpConnection
sigc::signal< void, TcpConnection *, DisconnectReason >	disconnected
	Get common name for the SSL connection.
sigc::signal< int, TcpConnection *, void *, int >	dataReceived
	A signal that is emitted when data has been received on the connection.
sigc::signal< if_all_true_acc::result_type, TcpConnection *, int, X509_STORE_CTX * >::accumulated< if_all_true_acc >	verifyPeer
	A signal that is emitted on SSL/TLS certificate verification.
sigc::signal< void, TcpConnection * >	sslConnectionReady
	A signal that is emitted when the SSL connection is ready.
Public Attributes inherited from Async::TcpClientBase
sigc::signal< void >	connected
	A signal that is emitted when a connection has been established.
Static Public Attributes inherited from Async::TcpConnection
static const int	DEFAULT_RECV_BUF_LEN = 1024
	The default size of the reception buffer.

Detailed Description

template<typename ConT = TcpConnection>
class Async::TcpPrioClient< ConT >

A_brief_class_description.

Author

Tobias Blomberg / SM0SVX

Date

2021-06-27

A_detailed_class_description

#include <iostream>
#include <AsyncCppApplication.h>
#include <AsyncTcpPrioClient.h>

using namespace std;
using namespace Async;

class MyClass : public sigc::trackable
{
  public:
    MyClass(void)
    {
      con = new TcpPrioClient<>;
      con->connected.connect(mem_fun(*this, &MyClass::onConnected));
      con->disconnected.connect(mem_fun(*this, &MyClass::onDisconnected));
      con->dataReceived.connect(mem_fun(*this, &MyClass::onDataReceived));
      con->setService("svxreflector", "tcp", "test.svxlink.org");
      con->addStaticSRVRecord(3600, 1, 100, 5304, "localhost.");
      con->setBindIp(Async::IpAddress("127.0.0.1"));
      con->connect();
    }

    ~MyClass(void)
    {
      delete con;
    }

  private:
    TcpPrioClient<>* con;

    void onConnected(void)
    {
      std::cout << "Connection established to " << con->remoteHost()
                << ":" << con->remotePort() << "..." << std::endl;
      //con->write("GET /\n", 6);
    }

    void onDisconnected(TcpConnection *con, TcpClient<>::DisconnectReason reason)
    {
      std::cout << "Disconnected from " << con->remoteHost()
                << ":" << con->remotePort()
                << ": " << con->disconnectReasonStr(reason)
                << "..." << std::endl;
    }

    int onDataReceived(TcpConnection *con, void *buf, int count)
    {
      char *str = static_cast<char *>(buf);
      string html(str, str+count);
      cout << html;
      std::cout << "### Quitting: count=" << count << std::endl;
      Application::app().quit();
      return count;
    }
};

int main(int argc, char **argv)
{
  CppApplication app;
  MyClass my_class;
  app.exec();
}

Examples

AsyncTcpPrioClient_demo.cpp.

Definition at line 123 of file AsyncTcpPrioClient.h.

Constructor & Destructor Documentation

TcpPrioClient() [1/2]

template<typename ConT = TcpConnection>

Async::TcpPrioClient< ConT >::TcpPrioClient ( size_t recv_buf_len = ConT::DEFAULT_RECV_BUF_LEN )

inlineexplicit

Constructor.

Parameters

recv_buf_len

The length of the receiver buffer to use

The object will be constructed and variables will be initialized but no connection will be created until the connect function (see TcpClient::connect) is called. When using this variant of the constructor the connect method which take host and port must be used.

Definition at line 136 of file AsyncTcpPrioClient.h.

TcpPrioClient() [2/2]

template<typename ConT = TcpConnection>

Async::TcpPrioClient< ConT >::TcpPrioClient ( const TcpPrioClient< ConT > & )

delete

Disallow copy construction.

~TcpPrioClient()

template<typename ConT = TcpConnection>

virtual Async::TcpPrioClient< ConT >::~TcpPrioClient ( void )

inlinevirtual

Destructor.

Definition at line 152 of file AsyncTcpPrioClient.h.

Member Function Documentation

closeConnection()

template<typename ConT = TcpConnection>

virtual void Async::TcpPrioClient< ConT >::closeConnection ( void )

inlineprotectedvirtual

Disconnect from the remote peer.

This function is used internally to close the connection to the remote peer.

Reimplemented from Async::TcpConnection.

Definition at line 177 of file AsyncTcpPrioClient.h.

References Async::TcpClientBase::closeConnection().

disconnect()

template<typename ConT = TcpConnection>

virtual void Async::TcpPrioClient< ConT >::disconnect ( void )

inlinevirtual

Disconnect from the remote host.

Call this function to disconnect from the remote host. If already disconnected, nothing will be done. The disconnected signal is not emitted when this function is called

Reimplemented from Async::TcpConnection.

Definition at line 161 of file AsyncTcpPrioClient.h.

References Async::TcpPrioClientBase::disconnect().

emitDisconnected()

template<typename ConT = TcpConnection>

virtual void Async::TcpPrioClient< ConT >::emitDisconnected ( TcpConnection::DisconnectReason reason )

inlineprotectedvirtual

Emit the disconnected signal.

Parameters

reason

The reason for the disconnection

Reimplemented from Async::TcpConnection.

Definition at line 211 of file AsyncTcpPrioClient.h.

newTcpClient()

template<typename ConT = TcpConnection>

virtual TcpClientBase * Async::TcpPrioClient< ConT >::newTcpClient ( void )

inlineoverrideprotectedvirtual

Allocate a new TcpClient object.

Returns

Returns a new TcpClient object

This function is used to allocate a new TcpClient object. That object is used when in the background trying to connect to a higher prioritized server. Note that the object should be a "normal" TcpClient and not a TcpPrioClient.

Implements Async::TcpPrioClientBase.

Definition at line 206 of file AsyncTcpPrioClient.h.

onDisconnected()

template<typename ConT = TcpConnection>

virtual void Async::TcpPrioClient< ConT >::onDisconnected ( TcpConnection::DisconnectReason reason )

inlineprotectedvirtual

Called when a connection has been terminated.

Parameters

reason

The reason for the disconnect

This function will be called when the connection has been terminated.

Reimplemented from Async::TcpConnection.

Definition at line 189 of file AsyncTcpPrioClient.h.

References Async::TcpPrioClientBase::onDisconnected().

operator=()

template<typename ConT = TcpConnection>

TcpPrioClient & Async::TcpPrioClient< ConT >::operator= ( const TcpPrioClient< ConT > & )

delete

Disallow copy assignment.

---

The documentation for this class was generated from the following file:

• AsyncTcpPrioClient.h
