Async::DnsResourceRecord Class Referenceabstract

The base class for representing a DNS resource record. More...

#include <AsyncDnsResourceRecord.h>

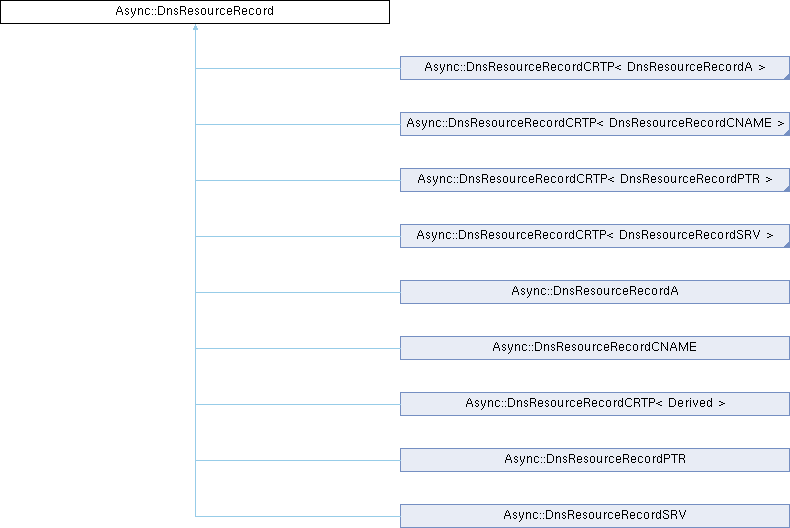

Inheritance diagram for Async::DnsResourceRecord:
Async::DnsResourceRecordCRTP< DnsResourceRecordA > Async::DnsResourceRecordCRTP< DnsResourceRecordCNAME > Async::DnsResourceRecordCRTP< DnsResourceRecordPTR > Async::DnsResourceRecordCRTP< DnsResourceRecordSRV > Async::DnsResourceRecordA Async::DnsResourceRecordCNAME Async::DnsResourceRecordCRTP< Derived > Async::DnsResourceRecordPTR Async::DnsResourceRecordSRV

Public Types

enum class  Type {
  ANY , A , PTR , CNAME ,
  SRV , A , PTR , CNAME ,
  SRV
}
 The record type. More...

enum class  Class { IN , IN }
 The record class. More...

enum class  Type {
  ANY , A , PTR , CNAME ,
  SRV , A , PTR , CNAME ,
  SRV
}

enum class  Class { IN , IN }

using Name = std::string

using Ttl = uint32_t

using List = std::vector<std::unique_ptr<DnsResourceRecord>>
 The type for a list of resource records.


Public Member Functions

 DnsResourceRecord (const Name &name, Ttl ttl)
 Constructor.

virtual ~DnsResourceRecord (void)
 Destructor.

virtual DnsResourceRecord * clone (void) const =0
 Clone this class.

virtual bool operator== (const DnsResourceRecord &other) const
 Equality comparison operator.

Class classId (void) const
 The DNS class for the record.

const char * classStr (void) const
 The DNS class for the record as a string.

virtual const Type type (void) const =0
 The type of record.

const std::string & typeStr (void) const
 The type of record as a string.

virtual std::string toString (void) const
 The string representation of this record.

void setName (const Name &name)
 Set the name for this record.

const Name & name (void) const
 The name of this record.

void setTtl (Ttl ttl)
 Set the TTL for this record.

Ttl ttl (void) const
 The TTL for this record.

 DnsResourceRecord (const std::string &name, uint32_t ttl)
 Default constructor.

 DnsResourceRecord (const DnsResourceRecord &)=delete
 Disallow copy construction.

DnsResourceRecord & operator= (const DnsResourceRecord &)=delete
 Disallow copy assignment.

virtual ~DnsResourceRecord (void)
 Destructor.

Class classId (void) const
 A_brief_member_function_description.

const char * classStr (void) const

virtual const Type type (void) const =0

const std::string & typeStr (void) const

virtual std::string toString (void) const

void setName (const std::string &name)

const std::string & name (void) const

void setTtl (uint32_t ttl)

uint32_t ttl (void) const


Static Public Member Functions

static const Type staticType (void)
 The type for this specific class.

static const std::string & typeToString (Type type)
 The type for this specific class represented as a string.

static const std::string & typeToString (Type type)


Static Public Attributes

static constexpr Ttl MAX_TTL = 0x7fffffff
 The maximum allowed value for a TTL.


Detailed Description

The base class for representing a DNS resource record.

A_brief_class_description.

Author
Tobias Blomberg / SM0SVX
Date
2021-05-22

This is the base class for representing a DNS resource record. One or more resource records is the result of performing a DNS query.

#include <iostream>
#include <AsyncCppApplication.h>
#include <AsyncDnsLookup.h>
using namespace Async;
class MyClass : public sigc::trackable
{
public:
MyClass(void)
{
dns.resultsReady.connect(mem_fun(*this, &MyClass::onResultsReady));
dns.lookup("www.svxlink.org");
//dns.lookup("www.svxlink.org", DnsLookup::Type::CNAME);
//dns.lookup("185.199.110.153");
//dns.lookup("185.199.110.153", DnsLookup::Type::PTR);
//dns.lookup("153.110.199.185.in-addr.arpa.", DnsLookup::Type::PTR);
//std::string srv = "_svxreflector._tcp.test.svxlink.org";
//dns.addStaticResourceRecord(
// new DnsResourceRecordSRV(srv, 3600, 15, 10, 5304, "localhost."));
//dns.lookup(srv, DnsLookup::Type::SRV);
std::cout << "Starting " << dns.typeStr() << " record query for \""
<< dns.label() << "\"..." << std::endl;
}
void onResultsReady(DnsLookup& dns)
{
if (!dns.lookupFailed())
{
// Simple IP address lookup API
std::cout << "IP addresses received:\n";
for (auto& addr : dns.addresses())
{
std::cout << addr << std::endl;
}
std::cout << std::endl;
// Access to all resource records
std::cout << "All resource records received:\n";
for (auto& rr : dns.resourceRecords())
{
std::cout << rr->toString() << std::endl;
}
std::cout << std::endl;
// Access A records with full detail
DnsResourceRecordA::List a_rrs;
dns.resourceRecords(a_rrs);
if (!a_rrs.empty())
{
std::cout << "A records received:\n";
for (auto& rr : a_rrs)
{
std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->ip()
<< std::endl;
}
std::cout << std::endl;
}
// Access PTR records with full detail
DnsResourceRecordPTR::List ptr_rrs;
dns.resourceRecords(ptr_rrs);
if (!ptr_rrs.empty())
{
std::cout << "PTR records received:\n";
for (auto& rr : ptr_rrs)
{
std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->dname()
<< std::endl;
}
std::cout << std::endl;
}
// Access CNAME records with full detail
DnsResourceRecordCNAME::List cname_rrs;
dns.resourceRecords(cname_rrs);
if (!cname_rrs.empty())
{
std::cout << "CNAME records received:\n";
for (auto& rr : cname_rrs)
{
std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->cname()
<< std::endl;
}
std::cout << std::endl;
}
// Access SRV records with full detail
DnsResourceRecordSRV::List srv_rrs;
dns.resourceRecords(srv_rrs);
if (!srv_rrs.empty())
{
std::cout << "SRV records received:\n";
for (auto& rr : srv_rrs)
{
std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->prio()
<< " " << rr->weight() << " " << rr->port() << " "
<< rr->target() << std::endl;
}
}
}
else
{
std::cout << "*** ERROR: The " << dns.typeStr()
<< " record DNS lookup for " << dns.label()
<< " failed" << std::endl;
}
Application::app().quit();
}
private:
DnsLookup dns;
};
int main(int argc, char **argv)
{
CppApplication app;
MyClass dns;
app.exec();
}
AsyncCppApplication.h
The core class for writing asyncronous cpp applications.
AsyncDnsLookup.h
Contains a class for executing DNS queries.
Async::CppApplication
An application class for writing non GUI applications.
Definition AsyncCppApplication.h:137
Async::CppApplication::exec
void exec(void)
Execute the application main loop.
Async::DnsLookup
A class for performing asynchronous DNS lookups.
Definition AsyncDnsLookup.h:123
Async::DnsLookup::resourceRecords
DnsResourceRecord::List resourceRecords(Type type=Type::ANY) const
Return all matching resource records.
Definition AsyncDnsLookup.h:306
Async::DnsLookup::label
const std::string & label(void) const
Return the associated label.
Definition AsyncDnsLookup.h:214
Async::DnsLookup::typeStr
std::string typeStr(void) const
Return the type of lookup as a string.
Definition AsyncDnsLookup.h:205
Async::DnsLookup::lookupFailed
bool lookupFailed(void) const
Check if the lookup failed.
Async::DnsLookup::addresses
std::vector< IpAddress > addresses(void)
Return the addresses for the host in the query.
Async::DnsResourceRecord::List
std::vector< std::unique_ptr< DnsResourceRecord > > List
The type for a list of resource records.
Definition AsyncDnsResourceRecord.h:138
Async
Namespace for the asynchronous programming classes.
Definition AsyncApplication.h:76
Author
Tobias Blomberg / SM0SVX
Date
2021-05-22

A_detailed_class_description

#include <iostream>
#include <AsyncCppApplication.h>
#include <AsyncDnsLookup.h>
using namespace Async;
class MyClass : public sigc::trackable
{
public:
MyClass(void)
{
dns.resultsReady.connect(mem_fun(*this, &MyClass::onResultsReady));
dns.lookup("www.svxlink.org");
//dns.lookup("www.svxlink.org", DnsLookup::Type::CNAME);
//dns.lookup("185.199.110.153");
//dns.lookup("185.199.110.153", DnsLookup::Type::PTR);
//dns.lookup("153.110.199.185.in-addr.arpa.", DnsLookup::Type::PTR);
//std::string srv = "_svxreflector._tcp.test.svxlink.org";
//dns.addStaticResourceRecord(
// new DnsResourceRecordSRV(srv, 3600, 15, 10, 5304, "localhost."));
//dns.lookup(srv, DnsLookup::Type::SRV);
std::cout << "Starting " << dns.typeStr() << " record query for \""
<< dns.label() << "\"..." << std::endl;
}
void onResultsReady(DnsLookup& dns)
{
if (!dns.lookupFailed())
{
// Simple IP address lookup API
std::cout << "IP addresses received:\n";
for (auto& addr : dns.addresses())
{
std::cout << addr << std::endl;
}
std::cout << std::endl;
// Access to all resource records
std::cout << "All resource records received:\n";
for (auto& rr : dns.resourceRecords())
{
std::cout << rr->toString() << std::endl;
}
std::cout << std::endl;
// Access A records with full detail
DnsResourceRecordA::List a_rrs;
dns.resourceRecords(a_rrs);
if (!a_rrs.empty())
{
std::cout << "A records received:\n";
for (auto& rr : a_rrs)
{
std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->ip()
<< std::endl;
}
std::cout << std::endl;
}
// Access PTR records with full detail
DnsResourceRecordPTR::List ptr_rrs;
dns.resourceRecords(ptr_rrs);
if (!ptr_rrs.empty())
{
std::cout << "PTR records received:\n";
for (auto& rr : ptr_rrs)
{
std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->dname()
<< std::endl;
}
std::cout << std::endl;
}
// Access CNAME records with full detail
DnsResourceRecordCNAME::List cname_rrs;
dns.resourceRecords(cname_rrs);
if (!cname_rrs.empty())
{
std::cout << "CNAME records received:\n";
for (auto& rr : cname_rrs)
{
std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->cname()
<< std::endl;
}
std::cout << std::endl;
}
// Access SRV records with full detail
DnsResourceRecordSRV::List srv_rrs;
dns.resourceRecords(srv_rrs);
if (!srv_rrs.empty())
{
std::cout << "SRV records received:\n";
for (auto& rr : srv_rrs)
{
std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->prio()
<< " " << rr->weight() << " " << rr->port() << " "
<< rr->target() << std::endl;
}
}
}
else
{
std::cout << "*** ERROR: The " << dns.typeStr()
<< " record DNS lookup for " << dns.label()
<< " failed" << std::endl;
}
Application::app().quit();
}
private:
DnsLookup dns;
};
int main(int argc, char **argv)
{
CppApplication app;
MyClass dns;
app.exec();
}

Definition at line 120 of file AsyncResourceRecord.h.

Member Typedef Documentation

◆ List

using Async::DnsResourceRecord::List = std::vector<std::unique_ptr<DnsResourceRecord>>

The type for a list of resource records.

Definition at line 138 of file AsyncDnsResourceRecord.h.

◆ Name

using Async::DnsResourceRecord::Name = std::string

Definition at line 122 of file AsyncDnsResourceRecord.h.

◆ Ttl

using Async::DnsResourceRecord::Ttl = uint32_t

Definition at line 123 of file AsyncDnsResourceRecord.h.

Member Enumeration Documentation

◆ Class [1/2]

enum class Async::DnsResourceRecord::Class
strong

The record class.

Enumerator
IN
IN

Definition at line 133 of file AsyncDnsResourceRecord.h.

◆ Class [2/2]

enum class Async::DnsResourceRecord::Class
strong
Enumerator
IN
IN

Definition at line 124 of file AsyncResourceRecord.h.

◆ Type [1/2]

enum class Async::DnsResourceRecord::Type
strong

The record type.

Enumerator
ANY
A
PTR
CNAME
SRV
A
PTR
CNAME
SRV

Definition at line 128 of file AsyncDnsResourceRecord.h.

◆ Type [2/2]

enum class Async::DnsResourceRecord::Type
strong
Enumerator
ANY
A
PTR
CNAME
SRV
A
PTR
CNAME
SRV

Definition at line 123 of file AsyncResourceRecord.h.

Constructor & Destructor Documentation

◆ DnsResourceRecord() [1/3]

Async::DnsResourceRecord::DnsResourceRecord ( const Name & name,
Ttl ttl )
inline

Constructor.

Parameters
nameThe name of this record
ttlThe time-to-live, in seconds, for this record

Definition at line 173 of file AsyncDnsResourceRecord.h.

◆ ~DnsResourceRecord() [1/2]

virtual Async::DnsResourceRecord::~DnsResourceRecord ( void )
inlinevirtual

Destructor.

Definition at line 179 of file AsyncDnsResourceRecord.h.

◆ DnsResourceRecord() [2/3]

Async::DnsResourceRecord::DnsResourceRecord ( const std::string & name,
uint32_t ttl )
inline

Default constructor.

Definition at line 144 of file AsyncResourceRecord.h.

◆ DnsResourceRecord() [3/3]

Async::DnsResourceRecord::DnsResourceRecord ( const DnsResourceRecord & )
delete

Disallow copy construction.

◆ ~DnsResourceRecord() [2/2]

virtual Async::DnsResourceRecord::~DnsResourceRecord ( void )
inlinevirtual

Destructor.

Definition at line 160 of file AsyncResourceRecord.h.

Member Function Documentation

◆ classId() [1/2]

Class Async::DnsResourceRecord::classId ( void ) const
inline

The DNS class for the record.

Returns
Return the DNS class for the record

Definition at line 205 of file AsyncDnsResourceRecord.h.

References IN.

Referenced by operator==().

◆ classId() [2/2]

Class Async::DnsResourceRecord::classId ( void ) const
inline

A_brief_member_function_description.

Parameters
param1Description_of_param1
Returns
Return_value_of_this_member_function

Definition at line 167 of file AsyncResourceRecord.h.

References IN.

◆ classStr() [1/2]

const char * Async::DnsResourceRecord::classStr ( void ) const
inline

The DNS class for the record as a string.

Returns
Return the DNS class as a string for this record

Definition at line 211 of file AsyncDnsResourceRecord.h.

Referenced by toString().

◆ classStr() [2/2]

const char * Async::DnsResourceRecord::classStr ( void ) const
inline

Definition at line 168 of file AsyncResourceRecord.h.

◆ clone()

virtual DnsResourceRecord * Async::DnsResourceRecord::clone ( void ) const
pure virtual

Clone this class.

Returns
Return a pointer to a clone of this instance

Implemented in Async::DnsResourceRecordCRTP< Derived >, Async::DnsResourceRecordCRTP< DnsResourceRecordA >, Async::DnsResourceRecordCRTP< DnsResourceRecordCNAME >, Async::DnsResourceRecordCRTP< DnsResourceRecordPTR >, and Async::DnsResourceRecordCRTP< DnsResourceRecordSRV >.

◆ name() [1/2]

const Name & Async::DnsResourceRecord::name ( void ) const
inline

The name of this record.

Returns
Return the name of this record

Definition at line 250 of file AsyncDnsResourceRecord.h.

Referenced by operator==(), setName(), setName(), and toString().

◆ name() [2/2]

const std::string & Async::DnsResourceRecord::name ( void ) const
inline

Definition at line 185 of file AsyncResourceRecord.h.

◆ operator=()

DnsResourceRecord & Async::DnsResourceRecord::operator= ( const DnsResourceRecord & )
delete

Disallow copy assignment.

◆ operator==()

virtual bool Async::DnsResourceRecord::operator== ( const DnsResourceRecord & other) const
inlinevirtual

Equality comparison operator.

Parameters
otherThe other resource record to comapare to
Returns
Return true if the two records are equal

NOTE: The TTL is not used in the comparison.

Reimplemented in Async::DnsResourceRecordCRTP< Derived >, Async::DnsResourceRecordCRTP< DnsResourceRecordA >, Async::DnsResourceRecordCRTP< DnsResourceRecordCNAME >, Async::DnsResourceRecordCRTP< DnsResourceRecordPTR >, and Async::DnsResourceRecordCRTP< DnsResourceRecordSRV >.

Definition at line 194 of file AsyncDnsResourceRecord.h.

References classId(), name(), and type().

Referenced by Async::DnsResourceRecordA::operator==(), Async::DnsResourceRecordCNAME::operator==(), Async::DnsResourceRecordPTR::operator==(), and Async::DnsResourceRecordSRV::operator==().

◆ setName() [1/2]

void Async::DnsResourceRecord::setName ( const Name & name)
inline

Set the name for this record.

Parameters
namethe new name of the record

Definition at line 244 of file AsyncDnsResourceRecord.h.

References name().

◆ setName() [2/2]

void Async::DnsResourceRecord::setName ( const std::string & name)
inline

Definition at line 184 of file AsyncResourceRecord.h.

References name().

◆ setTtl() [1/2]

void Async::DnsResourceRecord::setTtl ( Ttl ttl)
inline

Set the TTL for this record.

Parameters
ttlThe time-to-live, in seconds, for this record

Definition at line 256 of file AsyncDnsResourceRecord.h.

References ttl().

◆ setTtl() [2/2]

void Async::DnsResourceRecord::setTtl ( uint32_t ttl)
inline

Definition at line 187 of file AsyncResourceRecord.h.

References ttl().

◆ staticType()

static const Type Async::DnsResourceRecord::staticType ( void )
inlinestatic

The type for this specific class.

Definition at line 148 of file AsyncDnsResourceRecord.h.

References ANY.

◆ toString() [1/2]

virtual std::string Async::DnsResourceRecord::toString ( void ) const
inlinevirtual

The string representation of this record.

Returns
Return the string representation of this record

Reimplemented in Async::DnsResourceRecordA, Async::DnsResourceRecordA, Async::DnsResourceRecordCNAME, Async::DnsResourceRecordCNAME, Async::DnsResourceRecordPTR, Async::DnsResourceRecordPTR, Async::DnsResourceRecordSRV, and Async::DnsResourceRecordSRV.

Definition at line 232 of file AsyncDnsResourceRecord.h.

References classStr(), name(), ttl(), and typeStr().

Referenced by Async::DnsResourceRecordA::toString(), Async::DnsResourceRecordCNAME::toString(), Async::DnsResourceRecordPTR::toString(), and Async::DnsResourceRecordSRV::toString().

◆ toString() [2/2]

virtual std::string Async::DnsResourceRecord::toString ( void ) const
inlinevirtual

Reimplemented in Async::DnsResourceRecordA, Async::DnsResourceRecordA, Async::DnsResourceRecordCNAME, Async::DnsResourceRecordCNAME, Async::DnsResourceRecordPTR, Async::DnsResourceRecordPTR, Async::DnsResourceRecordSRV, and Async::DnsResourceRecordSRV.

Definition at line 176 of file AsyncResourceRecord.h.

References classStr(), name(), ttl(), and typeStr().

◆ ttl() [1/2]

Ttl Async::DnsResourceRecord::ttl ( void ) const
inline

The TTL for this record.

Returns
Return the time-to-live, in seconds, for this record

Definition at line 262 of file AsyncDnsResourceRecord.h.

Referenced by setTtl(), setTtl(), and toString().

◆ ttl() [2/2]

uint32_t Async::DnsResourceRecord::ttl ( void ) const
inline

Definition at line 188 of file AsyncResourceRecord.h.

◆ type() [1/2]

virtual const Type Async::DnsResourceRecord::type ( void ) const
pure virtual

The type of record.

Returns
Return the type of this record

Implemented in Async::DnsResourceRecordA, Async::DnsResourceRecordCNAME, Async::DnsResourceRecordCRTP< Derived >, Async::DnsResourceRecordCRTP< DnsResourceRecordA >, Async::DnsResourceRecordCRTP< DnsResourceRecordCNAME >, Async::DnsResourceRecordCRTP< DnsResourceRecordPTR >, Async::DnsResourceRecordCRTP< DnsResourceRecordSRV >, Async::DnsResourceRecordPTR, and Async::DnsResourceRecordSRV.

Referenced by operator==(), typeStr(), and typeToString().

◆ type() [2/2]

virtual const Type Async::DnsResourceRecord::type ( void ) const
pure virtual

Implemented in Async::DnsResourceRecordA, Async::DnsResourceRecordCNAME, Async::DnsResourceRecordCRTP< Derived >, Async::DnsResourceRecordCRTP< DnsResourceRecordA >, Async::DnsResourceRecordCRTP< DnsResourceRecordCNAME >, Async::DnsResourceRecordCRTP< DnsResourceRecordPTR >, Async::DnsResourceRecordCRTP< DnsResourceRecordSRV >, Async::DnsResourceRecordPTR, and Async::DnsResourceRecordSRV.

◆ typeStr() [1/2]

const std::string & Async::DnsResourceRecord::typeStr ( void ) const
inline

The type of record as a string.

Returns
Return the type of this record as a string

Definition at line 223 of file AsyncDnsResourceRecord.h.

References type(), and typeToString().

Referenced by toString().

◆ typeStr() [2/2]

const std::string & Async::DnsResourceRecord::typeStr ( void ) const
inline

Definition at line 171 of file AsyncResourceRecord.h.

References type(), and typeToString().

◆ typeToString() [1/2]

static const std::string & Async::DnsResourceRecord::typeToString ( Type type)
inlinestatic

The type for this specific class represented as a string.

Definition at line 153 of file AsyncDnsResourceRecord.h.

References A, CNAME, PTR, SRV, and type().

Referenced by Async::DnsLookup::typeStr(), and typeStr().

◆ typeToString() [2/2]

static const std::string & Async::DnsResourceRecord::typeToString ( Type type)
inlinestatic

Definition at line 126 of file AsyncResourceRecord.h.

References A, CNAME, PTR, SRV, and type().

Member Data Documentation

◆ MAX_TTL

Ttl Async::DnsResourceRecord::MAX_TTL = 0x7fffffff
staticconstexpr

The maximum allowed value for a TTL.

Definition at line 143 of file AsyncDnsResourceRecord.h.

The documentation for this class was generated from the following files:
Generated on Sun May 4 2025 14:24:10 for Async by doxygen 1.12.0
