A class for representing an A DNS resource record. More...

#include <AsyncDnsResourceRecord.h>

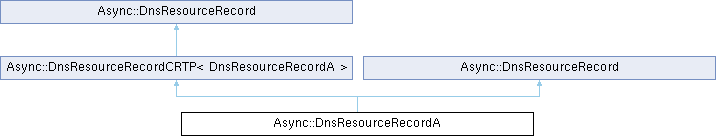

Inheritance diagram for Async::DnsResourceRecordA:

Public Types
using	Ip = Async::IpAddress

Public Types inherited from Async::DnsResourceRecordCRTP< DnsResourceRecordA >
using	List
	The type for a list of resource records.

Public Types inherited from Async::DnsResourceRecord
enum class	Type { ANY , A , PTR , CNAME , SRV , A , PTR , CNAME , SRV }
	The record type. More...

enum class	Class { IN , IN }
	The record class. More...

enum class	Type { ANY , A , PTR , CNAME , SRV , A , PTR , CNAME , SRV }

enum class	Class { IN , IN }

using	Name = std::string

using	Ttl = uint32_t

using	List = std::vector<std::unique_ptr<DnsResourceRecord>>
	The type for a list of resource records.

Public Member Functions
	DnsResourceRecordA (const Name &name, Ttl ttl, const Ip &ip=Ip())
	Constructor.

virtual bool	operator== (const DnsResourceRecordA &other) const
	Equality comparison operator.

virtual std::string	toString (void) const
	The string representation of this record.

void	setIp (const Ip &ip)
	Set the IP address for this record.

const Ip &	ip (void) const
	The IP address for this record.

	DnsResourceRecordA (const std::string &name, uint32_t ttl, const IpAddress &ip=IpAddress())

	~DnsResourceRecordA (void)

virtual const Type	type (void) const
	The type of record.

virtual std::string	toString (void) const
	The string representation of this record.

void	setIp (const IpAddress &ip)

const IpAddress &	ip (void) const

Public Member Functions inherited from Async::DnsResourceRecordCRTP< DnsResourceRecordA >
	DnsResourceRecordCRTP (const Name &name, Ttl ttl)
	Constructor.

virtual DnsResourceRecord *	clone (void) const
	Clone this class.

virtual bool	operator== (const DnsResourceRecord &other) const
	Equality comparison operator.

Public Member Functions inherited from Async::DnsResourceRecord
	DnsResourceRecord (const Name &name, Ttl ttl)
	Constructor.

virtual	~DnsResourceRecord (void)
	Destructor.

Class	classId (void) const
	The DNS class for the record.

const char *	classStr (void) const
	The DNS class for the record as a string.

const std::string &	typeStr (void) const
	The type of record as a string.

void	setName (const Name &name)
	Set the name for this record.

const Name &	name (void) const
	The name of this record.

void	setTtl (Ttl ttl)
	Set the TTL for this record.

Ttl	ttl (void) const
	The TTL for this record.

	DnsResourceRecord (const std::string &name, uint32_t ttl)
	Default constructor.

	DnsResourceRecord (const DnsResourceRecord &)=delete
	Disallow copy construction.

DnsResourceRecord &	operator= (const DnsResourceRecord &)=delete
	Disallow copy assignment.

virtual	~DnsResourceRecord (void)
	Destructor.

Class	classId (void) const
	A_brief_member_function_description.

const char *	classStr (void) const

const std::string &	typeStr (void) const

void	setName (const std::string &name)

const std::string &	name (void) const

void	setTtl (uint32_t ttl)

uint32_t	ttl (void) const

Static Public Member Functions
static const Type	staticType (void)
	The type for this specific class.

static const Type	staticType (void)

Static Public Member Functions inherited from Async::DnsResourceRecord
static const Type	staticType (void)
	The type for this specific class.

static const std::string &	typeToString (Type type)
	The type for this specific class represented as a string.

static const std::string &	typeToString (Type type)

Additional Inherited Members
Static Public Attributes inherited from Async::DnsResourceRecord
static constexpr Ttl	MAX_TTL = 0x7fffffff
	The maximum allowed value for a TTL.

Detailed Description

A class for representing an A DNS resource record.

Author: Tobias Blomberg / SM0SVX

Date: 2021-05-22

This class represents an A DNS resource record. One or more resource records is the result of performing a DNS query. This specific resource record maps a hostname to an IP address.

#include <iostream>
#include <AsyncCppApplication.h>
#include <AsyncDnsLookup.h>

using namespace Async;

class MyClass : public sigc::trackable
{
  public:
    MyClass(void)
    {
      dns.resultsReady.connect(mem_fun(*this, &MyClass::onResultsReady));

      dns.lookup("www.svxlink.org");
      //dns.lookup("www.svxlink.org", DnsLookup::Type::CNAME);
      //dns.lookup("185.199.110.153");
      //dns.lookup("185.199.110.153", DnsLookup::Type::PTR);
      //dns.lookup("153.110.199.185.in-addr.arpa.", DnsLookup::Type::PTR);

      //std::string srv = "_svxreflector._tcp.test.svxlink.org";
      //dns.addStaticResourceRecord(
      //    new DnsResourceRecordSRV(srv, 3600, 15, 10, 5304, "localhost."));
      //dns.lookup(srv, DnsLookup::Type::SRV);

      std::cout << "Starting " << dns.typeStr() << " record query for \""
                << dns.label() << "\"..." << std::endl;
    }

    void onResultsReady(DnsLookup& dns)
    {
      if (!dns.lookupFailed())
      {
          // Simple IP address lookup API
        std::cout << "IP addresses received:\n";
        for (auto& addr : dns.addresses())
        {
          std::cout << addr << std::endl;
        }
        std::cout << std::endl;

          // Access to all resource records
        std::cout << "All resource records received:\n";
        for (auto& rr : dns.resourceRecords())
        {
          std::cout << rr->toString() << std::endl;
        }
        std::cout << std::endl;

          // Access A records with full detail
        DnsResourceRecordA::List a_rrs;
        dns.resourceRecords(a_rrs);
        if (!a_rrs.empty())
        {
          std::cout << "A records received:\n";
          for (auto& rr : a_rrs)
          {
            std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->ip()
                      << std::endl;
          }
          std::cout << std::endl;
        }

          // Access PTR records with full detail
        DnsResourceRecordPTR::List ptr_rrs;
        dns.resourceRecords(ptr_rrs);
        if (!ptr_rrs.empty())
        {
          std::cout << "PTR records received:\n";
          for (auto& rr : ptr_rrs)
          {
            std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->dname()
                      << std::endl;
          }
          std::cout << std::endl;
        }

          // Access CNAME records with full detail
        DnsResourceRecordCNAME::List cname_rrs;
        dns.resourceRecords(cname_rrs);
        if (!cname_rrs.empty())
        {
          std::cout << "CNAME records received:\n";
          for (auto& rr : cname_rrs)
          {
            std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->cname()
                      << std::endl;
          }
          std::cout << std::endl;
        }

          // Access SRV records with full detail
        DnsResourceRecordSRV::List srv_rrs;
        dns.resourceRecords(srv_rrs);
        if (!srv_rrs.empty())
        {
          std::cout << "SRV records received:\n";
          for (auto& rr : srv_rrs)
          {
            std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->prio()
                      << " " << rr->weight() << " " << rr->port() << " "
                      << rr->target() << std::endl;
          }
        }
      }
      else
      {
        std::cout << "*** ERROR: The " << dns.typeStr()
                  << " record DNS lookup for " << dns.label()
                  << " failed" << std::endl;
      }

      Application::app().quit();
    }

  private:
    DnsLookup dns;
};

int main(int argc, char **argv)
{
  CppApplication app;
  MyClass dns;
  app.exec();
}

Definition at line 197 of file AsyncResourceRecord.h.

Member Typedef Documentation

◆ Ip

using Async::DnsResourceRecordA::Ip = Async::IpAddress

Definition at line 343 of file AsyncDnsResourceRecord.h.

Constructor & Destructor Documentation

◆ DnsResourceRecordA() [1/2]

Async::DnsResourceRecordA::DnsResourceRecordA	(	const Name &	name,
		Ttl	ttl,
		const Ip &	ip = Ip() )

inline

Constructor.

Parameters

name	The name of this record
ttl	The time-to-live, in seconds, for this record
ip	The IP address associated with the record name

Definition at line 356 of file AsyncDnsResourceRecord.h.

◆ DnsResourceRecordA() [2/2]

Async::DnsResourceRecordA::DnsResourceRecordA	(	const std::string &	name,
		uint32_t	ttl,
		const IpAddress &	ip = IpAddress() )

inline

Definition at line 202 of file AsyncResourceRecord.h.

◆ ~DnsResourceRecordA()

Async::DnsResourceRecordA::~DnsResourceRecordA ( void )

inline

Definition at line 205 of file AsyncResourceRecord.h.

Member Function Documentation

◆ ip() [1/2]

const Ip & Async::DnsResourceRecordA::ip ( void ) const

inline

The IP address for this record.

Returns: Return the IP address for this record

Definition at line 393 of file AsyncDnsResourceRecord.h.

Referenced by operator==(), setIp(), setIp(), and toString().

◆ ip() [2/2]

const IpAddress & Async::DnsResourceRecordA::ip ( void ) const

inline

Definition at line 216 of file AsyncResourceRecord.h.

◆ operator==()

virtual bool Async::DnsResourceRecordA::operator== ( const DnsResourceRecordA & other ) const

inlinevirtual

Equality comparison operator.

Parameters

other The other resource record to comapare to

Returns: Return true if the two records are equal

NOTE: The TTL is not used in the comparison.

Implements Async::DnsResourceRecordCRTP< DnsResourceRecordA >.

Definition at line 366 of file AsyncDnsResourceRecord.h.

References ip(), and Async::DnsResourceRecord::operator==().

◆ setIp() [1/2]

void Async::DnsResourceRecordA::setIp ( const Ip & ip )

inline

Set the IP address for this record.

Parameters

ip	The new IP address to set

Definition at line 387 of file AsyncDnsResourceRecord.h.

References ip().

◆ setIp() [2/2]

void Async::DnsResourceRecordA::setIp ( const IpAddress & ip )

inline

Definition at line 215 of file AsyncResourceRecord.h.

References ip().

◆ staticType() [1/2]

static const Type Async::DnsResourceRecordA::staticType ( void )

inlinestatic

The type for this specific class.

Definition at line 348 of file AsyncDnsResourceRecord.h.

References Async::DnsResourceRecord::A.

Referenced by type().

◆ staticType() [2/2]

static const Type Async::DnsResourceRecordA::staticType ( void )

inlinestatic

Definition at line 200 of file AsyncResourceRecord.h.

References Async::DnsResourceRecord::A.

◆ toString() [1/2]

virtual std::string Async::DnsResourceRecordA::toString ( void ) const

inlinevirtual

The string representation of this record.

Returns: Return the string representation of this record

Reimplemented from Async::DnsResourceRecord.

Definition at line 376 of file AsyncDnsResourceRecord.h.

References ip(), and Async::DnsResourceRecord::toString().

◆ toString() [2/2]

virtual std::string Async::DnsResourceRecordA::toString ( void ) const

inlinevirtual

The string representation of this record.

Returns: Return the string representation of this record

Reimplemented from Async::DnsResourceRecord.

Definition at line 208 of file AsyncResourceRecord.h.

References ip(), and Async::DnsResourceRecord::toString().

◆ type()

virtual const Type Async::DnsResourceRecordA::type ( void ) const

inlinevirtual

The type of record.

Returns: Return the type of this record

Reimplemented from Async::DnsResourceRecordCRTP< DnsResourceRecordA >.

Definition at line 207 of file AsyncResourceRecord.h.

References staticType().

The documentation for this class was generated from the following files:
