A class for representing a CNAME DNS resource record. More...

#include <AsyncDnsResourceRecord.h>

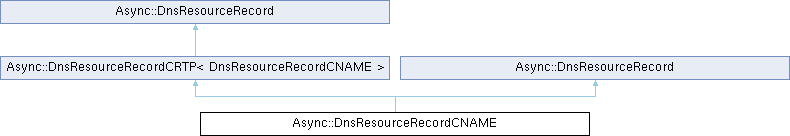

Inheritance diagram for Async::DnsResourceRecordCNAME:

Public Types
using	CName = std::string

Public Types inherited from Async::DnsResourceRecordCRTP< DnsResourceRecordCNAME >
using	List
	The type for a list of resource records.

Public Types inherited from Async::DnsResourceRecord
enum class	Type { ANY , A , PTR , CNAME , SRV , A , PTR , CNAME , SRV }
	The record type. More...

enum class	Class { IN , IN }
	The record class. More...

enum class	Type { ANY , A , PTR , CNAME , SRV , A , PTR , CNAME , SRV }

enum class	Class { IN , IN }

using	Name = std::string

using	Ttl = uint32_t

using	List = std::vector<std::unique_ptr<DnsResourceRecord>>
	The type for a list of resource records.

Public Member Functions
	DnsResourceRecordCNAME (const Name &name, Ttl ttl, const CName &cname="")
	Constructor.

virtual bool	operator== (const DnsResourceRecordCNAME &other) const
	Equality comparison operator.

virtual std::string	toString (void) const
	The string representation of this record.

void	setName (const CName &cname)
	Set the FQDN for this record.

const CName &	cname (void) const
	The FQDN for this record.

	DnsResourceRecordCNAME (const std::string &name, uint32_t ttl, const std::string &cname="")

	~DnsResourceRecordCNAME (void)

virtual const Type	type (void) const
	The type of record.

virtual std::string	toString (void) const
	The string representation of this record.

void	setName (const std::string &cname)

const std::string &	cname (void) const

Public Member Functions inherited from Async::DnsResourceRecordCRTP< DnsResourceRecordCNAME >
	DnsResourceRecordCRTP (const Name &name, Ttl ttl)
	Constructor.

virtual DnsResourceRecord *	clone (void) const
	Clone this class.

virtual bool	operator== (const DnsResourceRecord &other) const
	Equality comparison operator.

Public Member Functions inherited from Async::DnsResourceRecord
	DnsResourceRecord (const Name &name, Ttl ttl)
	Constructor.

virtual	~DnsResourceRecord (void)
	Destructor.

Class	classId (void) const
	The DNS class for the record.

const char *	classStr (void) const
	The DNS class for the record as a string.

const std::string &	typeStr (void) const
	The type of record as a string.

void	setName (const Name &name)
	Set the name for this record.

const Name &	name (void) const
	The name of this record.

void	setTtl (Ttl ttl)
	Set the TTL for this record.

Ttl	ttl (void) const
	The TTL for this record.

	DnsResourceRecord (const std::string &name, uint32_t ttl)
	Default constructor.

	DnsResourceRecord (const DnsResourceRecord &)=delete
	Disallow copy construction.

DnsResourceRecord &	operator= (const DnsResourceRecord &)=delete
	Disallow copy assignment.

virtual	~DnsResourceRecord (void)
	Destructor.

Class	classId (void) const
	A_brief_member_function_description.

const char *	classStr (void) const

const std::string &	typeStr (void) const

void	setName (const std::string &name)

const std::string &	name (void) const

void	setTtl (uint32_t ttl)

uint32_t	ttl (void) const

Static Public Member Functions
static const Type	staticType (void)
	The type for this specific class.

static const Type	staticType (void)

Static Public Member Functions inherited from Async::DnsResourceRecord
static const Type	staticType (void)
	The type for this specific class.

static const std::string &	typeToString (Type type)
	The type for this specific class represented as a string.

static const std::string &	typeToString (Type type)

Additional Inherited Members
Static Public Attributes inherited from Async::DnsResourceRecord
static constexpr Ttl	MAX_TTL = 0x7fffffff
	The maximum allowed value for a TTL.

Detailed Description

A class for representing a CNAME DNS resource record.

Author: Tobias Blomberg / SM0SVX

Date: 2021-05-22

This class represents a CNAME DNS resource record. One or more resource records is the result of performing a DNS query. This specific resource record maps a hostname to other hostnames.

#include <iostream>
#include <AsyncCppApplication.h>
#include <AsyncDnsLookup.h>

using namespace Async;

class MyClass : public sigc::trackable
{
  public:
    MyClass(void)
    {
      dns.resultsReady.connect(mem_fun(*this, &MyClass::onResultsReady));

      dns.lookup("www.svxlink.org");
      //dns.lookup("www.svxlink.org", DnsLookup::Type::CNAME);
      //dns.lookup("185.199.110.153");
      //dns.lookup("185.199.110.153", DnsLookup::Type::PTR);
      //dns.lookup("153.110.199.185.in-addr.arpa.", DnsLookup::Type::PTR);

      //std::string srv = "_svxreflector._tcp.test.svxlink.org";
      //dns.addStaticResourceRecord(
      //    new DnsResourceRecordSRV(srv, 3600, 15, 10, 5304, "localhost."));
      //dns.lookup(srv, DnsLookup::Type::SRV);

      std::cout << "Starting " << dns.typeStr() << " record query for \""
                << dns.label() << "\"..." << std::endl;
    }

    void onResultsReady(DnsLookup& dns)
    {
      if (!dns.lookupFailed())
      {
          // Simple IP address lookup API
        std::cout << "IP addresses received:\n";
        for (auto& addr : dns.addresses())
        {
          std::cout << addr << std::endl;
        }
        std::cout << std::endl;

          // Access to all resource records
        std::cout << "All resource records received:\n";
        for (auto& rr : dns.resourceRecords())
        {
          std::cout << rr->toString() << std::endl;
        }
        std::cout << std::endl;

          // Access A records with full detail
        DnsResourceRecordA::List a_rrs;
        dns.resourceRecords(a_rrs);
        if (!a_rrs.empty())
        {
          std::cout << "A records received:\n";
          for (auto& rr : a_rrs)
          {
            std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->ip()
                      << std::endl;
          }
          std::cout << std::endl;
        }

          // Access PTR records with full detail
        DnsResourceRecordPTR::List ptr_rrs;
        dns.resourceRecords(ptr_rrs);
        if (!ptr_rrs.empty())
        {
          std::cout << "PTR records received:\n";
          for (auto& rr : ptr_rrs)
          {
            std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->dname()
                      << std::endl;
          }
          std::cout << std::endl;
        }

          // Access CNAME records with full detail
        DnsResourceRecordCNAME::List cname_rrs;
        dns.resourceRecords(cname_rrs);
        if (!cname_rrs.empty())
        {
          std::cout << "CNAME records received:\n";
          for (auto& rr : cname_rrs)
          {
            std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->cname()
                      << std::endl;
          }
          std::cout << std::endl;
        }

          // Access SRV records with full detail
        DnsResourceRecordSRV::List srv_rrs;
        dns.resourceRecords(srv_rrs);
        if (!srv_rrs.empty())
        {
          std::cout << "SRV records received:\n";
          for (auto& rr : srv_rrs)
          {
            std::cout << rr->name() << "\t" << rr->ttl() << "\t" << rr->prio()
                      << " " << rr->weight() << " " << rr->port() << " "
                      << rr->target() << std::endl;
          }
        }
      }
      else
      {
        std::cout << "*** ERROR: The " << dns.typeStr()
                  << " record DNS lookup for " << dns.label()
                  << " failed" << std::endl;
      }

      Application::app().quit();
    }

  private:
    DnsLookup dns;
};

int main(int argc, char **argv)
{
  CppApplication app;
  MyClass dns;
  app.exec();
}

Definition at line 249 of file AsyncResourceRecord.h.

Member Typedef Documentation

◆ CName

using Async::DnsResourceRecordCNAME::CName = std::string

Definition at line 487 of file AsyncDnsResourceRecord.h.

Constructor & Destructor Documentation

◆ DnsResourceRecordCNAME() [1/2]

Async::DnsResourceRecordCNAME::DnsResourceRecordCNAME	(	const Name &	name,
		Ttl	ttl,
		const CName &	cname = "" )

inline

Constructor.

Parameters

name	The name of this record
ttl	The time-to-live, in seconds, for this record
cname	The FQDN associaated with this record name

Definition at line 500 of file AsyncDnsResourceRecord.h.

◆ DnsResourceRecordCNAME() [2/2]

Async::DnsResourceRecordCNAME::DnsResourceRecordCNAME	(	const std::string &	name,
		uint32_t	ttl,
		const std::string &	cname = "" )

inline

Definition at line 254 of file AsyncResourceRecord.h.

◆ ~DnsResourceRecordCNAME()

Async::DnsResourceRecordCNAME::~DnsResourceRecordCNAME ( void )

inline

Definition at line 257 of file AsyncResourceRecord.h.

Member Function Documentation

◆ cname() [1/2]

const CName & Async::DnsResourceRecordCNAME::cname ( void ) const

inline

The FQDN for this record.

Returns: Return the FQDN for this record

Definition at line 538 of file AsyncDnsResourceRecord.h.

Referenced by operator==(), setName(), setName(), and toString().

◆ cname() [2/2]

const std::string & Async::DnsResourceRecordCNAME::cname ( void ) const

inline

Definition at line 268 of file AsyncResourceRecord.h.

◆ operator==()

virtual bool Async::DnsResourceRecordCNAME::operator== ( const DnsResourceRecordCNAME & other ) const

inlinevirtual

Equality comparison operator.

Parameters

other The other resource record to comapare to

Returns: Return true if the two records are equal

NOTE: The TTL is not used in the comparison.

Implements Async::DnsResourceRecordCRTP< DnsResourceRecordCNAME >.

Definition at line 511 of file AsyncDnsResourceRecord.h.

References cname(), and Async::DnsResourceRecord::operator==().

◆ setName() [1/2]

void Async::DnsResourceRecordCNAME::setName ( const CName & cname )

inline

Set the FQDN for this record.

Parameters

cname The new FQDN for this record

Definition at line 532 of file AsyncDnsResourceRecord.h.

References cname().

◆ setName() [2/2]

void Async::DnsResourceRecordCNAME::setName ( const std::string & cname )

inline

Definition at line 267 of file AsyncResourceRecord.h.

References cname().

◆ staticType() [1/2]

static const Type Async::DnsResourceRecordCNAME::staticType ( void )

inlinestatic

The type for this specific class.

Definition at line 492 of file AsyncDnsResourceRecord.h.

References Async::DnsResourceRecord::CNAME.

Referenced by type().

◆ staticType() [2/2]

static const Type Async::DnsResourceRecordCNAME::staticType ( void )

inlinestatic

Definition at line 252 of file AsyncResourceRecord.h.

References Async::DnsResourceRecord::CNAME.

◆ toString() [1/2]

virtual std::string Async::DnsResourceRecordCNAME::toString ( void ) const

inlinevirtual

The string representation of this record.

Returns: Return the string representation of this record

Reimplemented from Async::DnsResourceRecord.

Definition at line 521 of file AsyncDnsResourceRecord.h.

References cname(), and Async::DnsResourceRecord::toString().

◆ toString() [2/2]

virtual std::string Async::DnsResourceRecordCNAME::toString ( void ) const

inlinevirtual

The string representation of this record.

Returns: Return the string representation of this record

Reimplemented from Async::DnsResourceRecord.

Definition at line 260 of file AsyncResourceRecord.h.

References cname(), and Async::DnsResourceRecord::toString().

◆ type()

virtual const Type Async::DnsResourceRecordCNAME::type ( void ) const

inlinevirtual

The type of record.

Returns: Return the type of this record

Reimplemented from Async::DnsResourceRecordCRTP< DnsResourceRecordCNAME >.

Definition at line 259 of file AsyncResourceRecord.h.

References staticType().

The documentation for this class was generated from the following files:
