Async::TcpClient< ConT > Class Template Reference

A class for creating a TCP client connection. More...

#include <AsyncTcpClient.h>

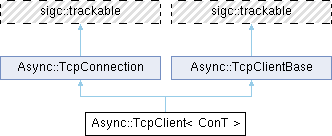

Inheritance diagram for Async::TcpClient< ConT >:

Public Member Functions
	TcpClient (size_t recv_buf_len=ConT::DEFAULT_RECV_BUF_LEN)
	Constructor.
	TcpClient (const std::string &remote_host, uint16_t remote_port, size_t recv_buf_len=ConT::DEFAULT_RECV_BUF_LEN)
	Constructor.
	TcpClient (const IpAddress &remote_ip, uint16_t remote_port, size_t recv_buf_len=ConT::DEFAULT_RECV_BUF_LEN)
	Constructor.
	~TcpClient (void)
	Destructor.
virtual void	disconnect (void) override
	Disconnect from the remote host.
bool	isIdle (void) const
	Check if the connection is idle.
void	setSslContext (SslContext &ctx)
Public Member Functions inherited from Async::TcpConnection
	TcpConnection (size_t recv_buf_len=DEFAULT_RECV_BUF_LEN)
	Constructor.
	TcpConnection (int sock, const IpAddress &remote_addr, uint16_t remote_port, size_t recv_buf_len=DEFAULT_RECV_BUF_LEN)
	Constructor.
virtual	~TcpConnection (void)
	Destructor.
virtual TcpConnection &	operator= (TcpConnection &&other)
	Move assignmnt operator.
void	setRecvBufLen (size_t recv_buf_len)
	Set a new receive buffer size.
size_t	recvBufLen (void) const
virtual int	write (const void *buf, int count)
	Write data to the TCP connection.
IpAddress	localHost (void) const
	Get the local IP address associated with this connection.
uint16_t	localPort (void) const
	Get the local TCP port associated with this connection.
const IpAddress &	remoteHost (void) const
	Return the IP-address of the remote host.
uint16_t	remotePort (void) const
	Return the remote port used.
bool	isConnected (void) const
	Check if the connection is established or not.
bool	isIdle (void) const
	Check if the connection is idle.
void	enableSsl (bool enable)
	Enable or disable TLS for this connection.
SslX509	sslPeerCertificate (void)
	Get the peer certificate associated with this connection.
Async::SslX509	sslCertificate (void) const
long	sslVerifyResult (void) const
	Get the result of the certificate verification process.
void	setSslContext (SslContext &ctx, bool is_server)
	Set the OpenSSL context to use when setting up the connection.
SslContext *	sslContext (void)
bool	isServer (void) const
void	freeze (void)
	Stop all communication.
void	unfreeze (void)
	Reenable all communication.
Public Member Functions inherited from Async::TcpClientBase
	TcpClientBase (TcpConnection *con)
	Constructor.
	TcpClientBase (TcpConnection *con, const std::string &remote_host, uint16_t remote_port)
	Constructor.
	TcpClientBase (TcpConnection *con, const IpAddress &remote_ip, uint16_t remote_port)
	Constructor.
virtual	~TcpClientBase (void)
	Destructor.
std::string	remoteHostName (void) const
	Get the name of the remote host as given to connect()
void	setBindIp (const IpAddress &bind_ip)
	Bind to the interface having the specified IP address.
const IpAddress &	bindIp (void) const
	Get the bind IP address.
void	connect (const std::string &remote_host, uint16_t remote_port)
	Connect to the remote host.
void	connect (const Async::IpAddress &remote_ip, uint16_t remote_port)
	Connect to the remote host.
void	connect (void)
	Connect to the remote host.
bool	isIdle (void) const
	Check if the connection is idle.
TcpConnection *	conObj (void)
	Return the connection object for this client connection.

Protected Member Functions
virtual void	closeConnection (void) override
	Disconnect from the remote peer.
virtual TcpClientBase &	operator= (TcpClientBase &&other)
	Move assignmnt operator.
Protected Member Functions inherited from Async::TcpConnection
void	setSocket (int sock)
	Setup information about the connection.
void	setRemoteAddr (const IpAddress &remote_addr)
	Setup information about the connection.
void	setRemotePort (uint16_t remote_port)
	Setup information about the connection.
int	socket (void) const
	Return the socket file descriptor.
virtual void	onDisconnected (DisconnectReason reason)
	Called when a connection has been terminated.
virtual int	onDataReceived (void *buf, int count)
	Called when data has been received on the connection.
virtual void	emitDisconnected (DisconnectReason reason)
	Emit the disconnected signal.
virtual int	emitVerifyPeer (int preverify_ok, X509_STORE_CTX *store_ctx)
	Emit the verifyPeer signal.
Protected Member Functions inherited from Async::TcpClientBase
virtual void	connectionEstablished (void)
	Called when the connection has been established to the server.
virtual void	emitConnected (void)

Additional Inherited Members
Public Types inherited from Async::TcpConnection
enum	DisconnectReason {   DR_HOST_NOT_FOUND , DR_REMOTE_DISCONNECTED , DR_SYSTEM_ERROR , DR_ORDERED_DISCONNECT ,   DR_PROTOCOL_ERROR , DR_SWITCH_PEER , DR_BAD_STATE }
	Reason code for disconnects. More...
Static Public Member Functions inherited from Async::TcpConnection
static const char *	disconnectReasonStr (DisconnectReason reason)
	Translate disconnect reason to a string.
Public Attributes inherited from Async::TcpConnection
sigc::signal< void, TcpConnection *, DisconnectReason >	disconnected
	Get common name for the SSL connection.
sigc::signal< int, TcpConnection *, void *, int >	dataReceived
	A signal that is emitted when data has been received on the connection.
sigc::signal< if_all_true_acc::result_type, TcpConnection *, int, X509_STORE_CTX * >::accumulated< if_all_true_acc >	verifyPeer
	A signal that is emitted on SSL/TLS certificate verification.
sigc::signal< void, TcpConnection * >	sslConnectionReady
	A signal that is emitted when the SSL connection is ready.
Public Attributes inherited from Async::TcpClientBase
sigc::signal< void >	connected
	A signal that is emitted when a connection has been established.
Static Public Attributes inherited from Async::TcpConnection
static const int	DEFAULT_RECV_BUF_LEN = 1024
	The default size of the reception buffer.

Detailed Description

template<typename ConT = TcpConnection>
class Async::TcpClient< ConT >

A class for creating a TCP client connection.

Author

Tobias Blomberg

Date

2003-04-12

This class is used to create a TCP client connection. All details of how to create the connection is hidden inside the class. This make it very easy to create and use the connections. An example usage is shown below.

#include <iostream>
#include <sstream>
#include <AsyncCppApplication.h>
#include <AsyncTcpClient.h>

using namespace Async;

class MyClass : public sigc::trackable
{
  public:
    MyClass(std::string hostname, uint16_t port)
    {
      con.connected.connect(mem_fun(*this, &MyClass::onConnected));
      con.disconnected.connect(mem_fun(*this, &MyClass::onDisconnected));
      con.dataReceived.connect(mem_fun(*this, &MyClass::onDataReceived));
      con.connect(hostname, port);
    }

  private:
    TcpClient<> con;

    void onConnected(void)
    {
      std::cout << "--- Connection established to " << con.remoteHost()
                << std::endl;
      std::string req(
          "GET / HTTP/1.0\r\n"
          "Connection: Close\r\n"
          "Host: " + con.remoteHostName() + "\r\n"
          "\r\n");
      std::cout << "--- Sending request:\n" << req << std::endl;
      con.write(req.data(), req.size());
    }

    void onDisconnected(TcpConnection *, TcpClient<>::DisconnectReason reason)
    {
      std::cout << "--- Disconnected from " << con.remoteHost() << ": "
                << TcpConnection::disconnectReasonStr(reason)
                << std::endl;
      Application::app().quit();
    }

    int onDataReceived(TcpConnection *, void *buf, int count)
    {
      std::cout << "--- Data received:" << std::endl;
      std::cout.write(static_cast<char*>(buf), count);
      std::cout << std::endl;
      return count;
    }
};

int main(int argc, char **argv)
{
  CppApplication app;
  MyClass my_class("checkip.amazonaws.com", 80);
  app.exec();
}

Examples

AsyncFramedTcpClient_demo.cpp, and AsyncTcpClient_demo.cpp.

Definition at line 131 of file AsyncTcpClient.h.

Constructor & Destructor Documentation

TcpClient() [1/3]

template<typename ConT = TcpConnection>

Async::TcpClient< ConT >::TcpClient ( size_t recv_buf_len = ConT::DEFAULT_RECV_BUF_LEN )

inlineexplicit

Constructor.

Parameters

recv_buf_len

The length of the receiver buffer to use

The object will be constructed and variables will be initialized but no connection will be created until the connect function (see TcpClient::connect) is called. When using this variant of the constructor the connect method which take host and port must be used.

Definition at line 144 of file AsyncTcpClient.h.

TcpClient() [2/3]

template<typename ConT = TcpConnection>

Async::TcpClient< ConT >::TcpClient ( const std::string & remote_host, uint16_t remote_port, size_t recv_buf_len = ConT::DEFAULT_RECV_BUF_LEN )

inline

Constructor.

Parameters

remote_host	The hostname of the remote host
remote_port	The port on the remote host to connect to
recv_buf_len	The length of the receiver buffer to use

The object will be constructed and variables will be initialized but no connection will be created until the connect function (see TcpClient::connect) is called.

Definition at line 159 of file AsyncTcpClient.h.

TcpClient() [3/3]

template<typename ConT = TcpConnection>

Async::TcpClient< ConT >::TcpClient ( const IpAddress & remote_ip, uint16_t remote_port, size_t recv_buf_len = ConT::DEFAULT_RECV_BUF_LEN )

inline

Constructor.

Parameters

remote_ip	The IP address of the remote host
remote_port	The port on the remote host to connect to
recv_buf_len	The length of the receiver buffer to use

The object will be constructed and variables will be initialized but no connection will be created until the connect function (see TcpClient::connect) is called.

Definition at line 175 of file AsyncTcpClient.h.

~TcpClient()

template<typename ConT = TcpConnection>

Async::TcpClient< ConT >::~TcpClient ( void )

inline

Destructor.

Definition at line 184 of file AsyncTcpClient.h.

Member Function Documentation

closeConnection()

template<typename ConT = TcpConnection>

virtual void Async::TcpClient< ConT >::closeConnection ( void )

inlineoverrideprotectedvirtual

Disconnect from the remote peer.

This function is used internally to close the connection to the remote peer.

Reimplemented from Async::TcpConnection.

Definition at line 218 of file AsyncTcpClient.h.

References Async::TcpClientBase::closeConnection().

Referenced by Async::TcpClient< ConT >::disconnect().

disconnect()

template<typename ConT = TcpConnection>

virtual void Async::TcpClient< ConT >::disconnect ( void )

inlineoverridevirtual

Disconnect from the remote host.

Call this function to disconnect from the remote host. If already disconnected, nothing will be done. The disconnected signal is not emitted when this function is called

Reimplemented from Async::TcpConnection.

Definition at line 193 of file AsyncTcpClient.h.

References Async::TcpClient< ConT >::closeConnection().

isIdle()

template<typename ConT = TcpConnection>

bool Async::TcpClient< ConT >::isIdle ( void ) const

inline

Check if the connection is idle.

Returns

Returns true if the connection is idle

A connection being idle means that it is not connected nor connecting.

Definition at line 201 of file AsyncTcpClient.h.

References Async::TcpClientBase::isIdle().

operator=()

template<typename ConT = TcpConnection>

virtual TcpClientBase & Async::TcpClientBase::operator= ( TcpClientBase && other )

protectedvirtual

Move assignmnt operator.

Parameters

other

The object to move from

Returns

Returns this object

Reimplemented from Async::TcpClientBase.

setSslContext()

template<typename ConT = TcpConnection>

void Async::TcpClient< ConT >::setSslContext ( SslContext & ctx )

inline

Definition at line 206 of file AsyncTcpClient.h.

---

The documentation for this class was generated from the following file:

• AsyncTcpClient.h
