A base class for creating a TCP client connection. More...

#include <AsyncTcpClientBase.h>

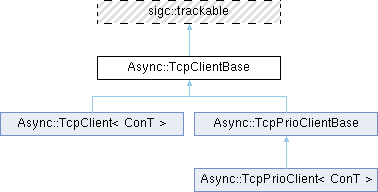

Inheritance diagram for Async::TcpClientBase:

Public Member Functions
	TcpClientBase (TcpConnection *con)
	Constructor.

	TcpClientBase (TcpConnection *con, const std::string &remote_host, uint16_t remote_port)
	Constructor.

	TcpClientBase (TcpConnection *con, const IpAddress &remote_ip, uint16_t remote_port)
	Constructor.

virtual	~TcpClientBase (void)
	Destructor.

virtual TcpClientBase &	operator= (TcpClientBase &&other)
	Move assignmnt operator.

std::string	remoteHostName (void) const
	Get the name of the remote host as given to connect()

void	setBindIp (const IpAddress &bind_ip)
	Bind to the interface having the specified IP address.

const IpAddress &	bindIp (void) const
	Get the bind IP address.

void	connect (const std::string &remote_host, uint16_t remote_port)
	Connect to the remote host.

void	connect (const Async::IpAddress &remote_ip, uint16_t remote_port)
	Connect to the remote host.

void	connect (void)
	Connect to the remote host.

virtual void	disconnect (void)=0
	Disconnect from the remote host.

bool	isIdle (void) const
	Check if the connection is idle.

TcpConnection *	conObj (void)
	Return the connection object for this client connection.

Public Attributes
sigc::signal< void >	connected
	A signal that is emitted when a connection has been established.

Protected Member Functions
virtual void	closeConnection (void)
	Check if the connection has been fully connected.

virtual void	connectionEstablished (void)
	Called when the connection has been established to the server.

virtual void	emitConnected (void)

Detailed Description

A base class for creating a TCP client connection.

Author: Tobias Blomberg

Date: 2003-04-12

This is a base class for creating TCP client connections. It should notmally not be used direclt but rather the TcpClient class should be used.

Definition at line 121 of file AsyncTcpClientBase.h.

Constructor & Destructor Documentation

◆ TcpClientBase() [1/3]

Async::TcpClientBase::TcpClientBase ( TcpConnection * con )

explicit

Constructor.

Parameters

con	The connection object associated with this client

The object will be constructed and variables will be initialized but no connection will be created until the connect function (see TcpClient::connect) is called. When using this variant of the constructor the connect method which take host and port must be used.

◆ TcpClientBase() [2/3]

Async::TcpClientBase::TcpClientBase	(	TcpConnection *	con,
		const std::string &	remote_host,
		uint16_t	remote_port )

Constructor.

Parameters

con	The connection object associated with this client
remote_host	The hostname of the remote host
remote_port	The port on the remote host to connect to

The object will be constructed and variables will be initialized but no connection will be created until the connect function (see TcpClient::connect) is called.

◆ TcpClientBase() [3/3]

Async::TcpClientBase::TcpClientBase	(	TcpConnection *	con,
		const IpAddress &	remote_ip,
		uint16_t	remote_port )

Constructor.

Parameters

con	The connection object associated with this client
remote_ip	The IP address of the remote host
remote_port	The port on the remote host to connect to

The object will be constructed and variables will be initialized but no connection will be created until the connect function (see TcpClient::connect) is called.

◆ ~TcpClientBase()

virtual Async::TcpClientBase::~TcpClientBase ( void )

virtual

Destructor.

Member Function Documentation

◆ bindIp()

const IpAddress & Async::TcpClientBase::bindIp ( void ) const

inline

Get the bind IP address.

Returns: Returns the bind IP address

Definition at line 201 of file AsyncTcpClientBase.h.

◆ closeConnection()

virtual void Async::TcpClientBase::closeConnection ( void )

protectedvirtual

Check if the connection has been fully connected.

Returns: Return true if the connection was successful

This function return true when the connection has been fully established. It will continue to return true even after disconnection and will be reset at the moment when a new connection attempt is made.

Disconnect from the remote peer

This function is used internally to close the connection to the remote peer.

Reimplemented in Async::TcpClient< ConT >, and Async::TcpPrioClient< ConT >.

Referenced by Async::TcpClient< ConT >::closeConnection(), and Async::TcpPrioClient< ConT >::closeConnection().

◆ connect() [1/3]

void Async::TcpClientBase::connect	(	const Async::IpAddress &	remote_ip,
		uint16_t	remote_port )

Connect to the remote host.

Parameters

remote_ip	The IP address of the remote host
remote_port	The port on the remote host to connect to

This function will initiate a connection to the remote host. The connection must not be written to before the connected signal (see TcpClient::connected) has been emitted. If the connection is already established or pending, an assertion will be raised.

◆ connect() [2/3]

void Async::TcpClientBase::connect	(	const std::string &	remote_host,
		uint16_t	remote_port )

Connect to the remote host.

Parameters

remote_host	The hostname of the remote host
remote_port	The port on the remote host to connect to

This function will initiate a connection to the remote host. The connection must not be written to before the connected signal (see TcpClient::connected) has been emitted. If the connection is already established or pending, an assertion will be raised.

◆ connect() [3/3]

void Async::TcpClientBase::connect ( void )

Connect to the remote host.

This function will initiate a connection to the remote host. The connection must not be written to before the connected signal (see TcpClient::connected) has been emitted. If the connection is already established or pending, an assertion will be raised.

◆ connectionEstablished()

virtual void Async::TcpClientBase::connectionEstablished ( void )

inlineprotectedvirtual

Called when the connection has been established to the server.

This function may be overridden by inheriting classes to get informed of when a connection has been established. The overriding function should normally call this function.

Reimplemented in Async::TcpPrioClientBase.

Definition at line 294 of file AsyncTcpClientBase.h.

References emitConnected().

◆ conObj()

TcpConnection * Async::TcpClientBase::conObj ( void )

inline

Return the connection object for this client connection.

Returns: Returns the connection object

Definition at line 258 of file AsyncTcpClientBase.h.

◆ disconnect()

virtual void Async::TcpClientBase::disconnect ( void )

pure virtual

Disconnect from the remote host.

Call this function to disconnect from the remote host. If already disconnected, nothing will be done. The disconnected signal is not emitted when this function is called

Implemented in Async::TcpClient< ConT >, Async::TcpPrioClient< ConT >, and Async::TcpPrioClientBase.

◆ emitConnected()

virtual void Async::TcpClientBase::emitConnected ( void )

inlineprotectedvirtual

Definition at line 300 of file AsyncTcpClientBase.h.

References connected.

Referenced by connectionEstablished().

◆ isIdle()

bool Async::TcpClientBase::isIdle ( void ) const

inline

Check if the connection is idle.

Returns: Returns true if the connection is idle

A connection being idle means that it is not connected nor connecting.

Definition at line 252 of file AsyncTcpClientBase.h.

References Async::DnsLookup::isPending().

Referenced by Async::TcpClient< ConT >::isIdle().

◆ operator=()

virtual TcpClientBase & Async::TcpClientBase::operator= ( TcpClientBase && other )

virtual

Move assignmnt operator.

Parameters

other The object to move from

Returns: Returns this object

Reimplemented in Async::TcpClient< ConT >, and Async::TcpPrioClientBase.

◆ remoteHostName()

std::string Async::TcpClientBase::remoteHostName ( void ) const

inline

Get the name of the remote host as given to connect()

Returns: Returns the name of the remote host

This function return the name of the remote host as it was given to the connect call. If an IP address was used the text representation of that will be returned.

Examples: AsyncTcpClient_demo.cpp.

Definition at line 182 of file AsyncTcpClientBase.h.

References Async::DnsLookup::label(), Async::TcpConnection::remoteHost(), and Async::IpAddress::toString().

◆ setBindIp()

void Async::TcpClientBase::setBindIp ( const IpAddress & bind_ip )

Bind to the interface having the specified IP address.

Parameters

bind_ip The IP address of the interface to bind to

Member Data Documentation

◆ connected

sigc::signal<void> Async::TcpClientBase::connected

A signal that is emitted when a connection has been established.

Examples: AsyncTcpPrioClient_demo.cpp.

Definition at line 263 of file AsyncTcpClientBase.h.

Referenced by emitConnected().

The documentation for this class was generated from the following file:

AsyncTcpClientBase.h
